Roof, Wall, Facadeoof, Wall, Facade
R

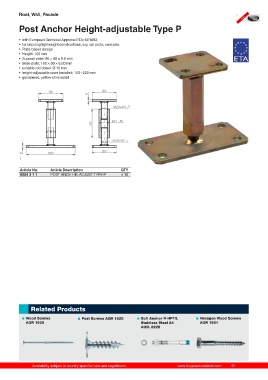

Post Anchor Height-adjustable Type P
• with European Technical Approval ETA-13/1063
• for securing lightweight constructions, e.g. car ports, canopies
• Plate-based design
• Height: 100 mm
• Support plate: 80 × 80 × 6.0 mm
• Base plate: 160 × 80 × 6.00 mm
• suitable rod dowel: Ø 10 mm
• height-adjustable once installed: 140 – 200 mm
• galvanised, yellow-chromated
Article No. Article Description QTY
8884 3 1 1 POST ANCH.HEI.ADJUST.TYPE P e 10
