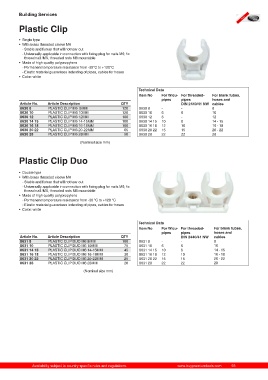

Page 93 - BPT Sanitary-Heating-Air Catalog

Building Services

Plastic Clip

• Single type
• With brass threaded sleeve M6
- Stable and fixture that will not tear out
- Universally applicable in connection with fixing plug for nails M6; fix
thread nail /M6, threaded rods M6 mountable
• Made of high quality polypropylene
- Permanent temperature resistance from -30°C to +120°C
- Elastic material guarantees indenting of pipes, cables for hoses
• Color: white

Technical Data
Item No For Wicu- For threaded- For blank tubes,
pipes pipes hoses and
Article No. Article Description QTY DIN 2440/41 NW cables
8630 8 PLASTIC CLIP M6 8MM 120 8630 8 - - 8
8630 10 PLASTIC CLIP M6 10MM 120 8630 10 6 6 10
8630 12 PLASTIC CLIP M6 12MM 100 8630 12 8 - 12
8630 14 15 PLASTIC CLIP M6 14-15MM 100 8630 14 15 10 8 14 - 15
8630 16 18 PLASTIC CLIP M6 16-18MM 100 8630 16 18 12 10 16 - 18
8630 20 22 PLASTIC CLIP M6 20-22MM 65 8630 20 22 15 15 20 - 22
8630 28 PLASTIC CLIP M6 28MM 50 8630 28 22 22 28
(Nominal size mm)

Plastic Clip Duo

• Double type
• With brass threaded sleeve M6
- Stable and fixture that will not tear out
- Universally applicable in connection with fixing plug for nails M6; fix
thread nail /M6, threaded rods M6 mountable
• Made of high quality polypropylene
- Permanent temperature resistance from -30 °C to +120 °C
- Elastic material guarantees indenting of pipes, cables for hoses
• Color: white

Technical Data
Item No For Wicu- For threaded- For blank tubes,
pipes pipes hoses and
Article No. Article Description QTY DIN 2440/41 NW cables
8631 8 PLASTIC CLIP DUO M6 8MM 100 8631 8 - - 8
8631 10 PLASTIC CLIP DUO M6 10MM 75 8631 10 6 6 10
8631 14 15 PLASTIC CLIP DUO M6 14-15MM 45 8631 14 15 10 8 14 - 15
8631 16 18 PLASTIC CLIP DUO M6 16-18MM 30 8631 16 18 12 10 16 - 18
8631 20 22 PLASTIC CLIP DUO M6 20-22MM 25 8631 20 22 15 15 20 - 22
8631 28 PLASTIC CLIP DUO M6 28MM 20 8631 28 22 22 28

(Nominal size mm)

Availability subject to country specific rules and regulations. www.buypremiumtools.com 93
