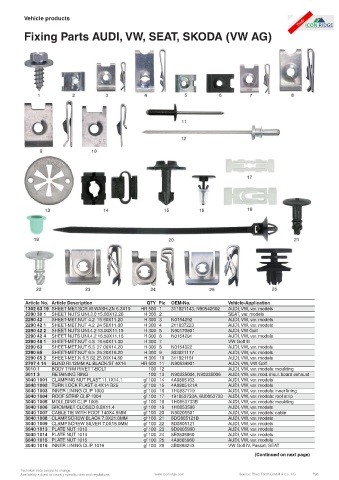

Page 796 - Icon Ridge Automotive & Truck Catalog

Vehicle products

Fixing Parts AUDI, VW, SEAT, SKODA (VW AG)

Article No. Article Description QTY Pic OEM-No. Vehicle-Application
1302 63 19 SHEET MET.SCR.W.WASH.ZN 6.3X19 HR 500 1 311821143, N90542602 AUDI, VW, var. models
2290 30 1 SHEET NUTS UNI.3.0 15.00X12.20 H 300 2 SEAT, var. models
2290 42 SHEET-MET.NUT 4.2 16.50X11.20 H 300 3 N0154292 AUDI, VW, var. models
2290 42 1 SHEET-MET.NUT 4.2 24.50X11.00 H 300 4 211837223 AUDI, VW, var. models
2290 42 2 SHEET NUTS UNI.4.2 13.00X11.15 H 300 5 N90170801 AUDI, VW Golf
2290 42 4 SHEET NUTS UNI.4.2 16.50X11.16 H 300 6 N0154291 AUDI, VW, var. models
2290 48 1 SHEET-MET.NUT 4.8 16.50X11.30 H 300 7 VW Golf III
2290 63 SHEET-MET.NUT 6.3 27.00X14.20 H 300 8 N0154322 AUDI, VW, var. models
2290 65 SHEET-MET.NUT 6.5 25.20X16.20 H 300 9 803821117 AUDI, VW, var. models
2290 65 2 SHEET-MET.N.6.5 S2 25.00X14.80 H 300 10 311821161 AUDI, VW, var. models
2707 4 14 BLIND RI.12MM AL BLACK/ST 4X14 HR 500 11 N90634901 AUDI, VW, VW Golf
3010 1 BODY TRIM RIVET T-BOLT 100 12 AUDI, VW, var. models: moulding
3011 3 RETAINING RING 100 13 N90335004, N90335006 AUDI, VW, var. mod. insul. board exhaust
3040 1001 CLAMPING NUT PLAST.11.1X14.1 gf 100 14 4A0805163 AUDI, VW, var. models
3040 1002 TURN LOCK PLAST. 6.4X14 B25 gf 100 15 4A0805121A AUDI, VW, var. models
3040 1003 INNER LINING CLIP 1003 gf 100 16 1H0837719 AUDI, VW, var. models: inner lining
3040 1004 ROOF STRIP CLIP 1004 gf 100 17 191853733A, 6U0853733 AUDI, VW, var. models: roof strip
3040 1005 MOULDING CLIP 1005 gf 100 18 1H0853733B AUDI, VW, var. models: moulding
3040 1006 GROMMET CLOSED 8.8X11.4 gf 100 19 1H0853586 AUDI, VW, var. models
3040 1007 CABLE TIE WITH FOOT 140X4.5MM gf 100 20 N90205501 AUDI, VW, var. models: cable
3040 1008 CLAMP.SCREW BLACK 7.0X21.0MM gf 100 21 8DO805121B AUDI, VW, var. models
3040 1009 CLAMP.SCREW SILVER 7.0X18.0MM gf 100 22 8D0805121 AUDI, VW, var. models
3040 1013 PLATE NUT 1013 gf 100 23 8D0805960 AUDI, VW, var. models
3040 1014 PLATE NUT 1014 gf 100 24 8E0805960 AUDI, VW, var. models
3040 1015 PLATE NUT 1015 gf 100 25 4A0805960 AUDI, VW, var. models
3040 1016 INNER LINING CLIP 1016 gf 100 26 3B0868243 VW Golf IV, Passat, SEAT
(Continued on next page)
