Drilling, Milling, Tapping and Threading

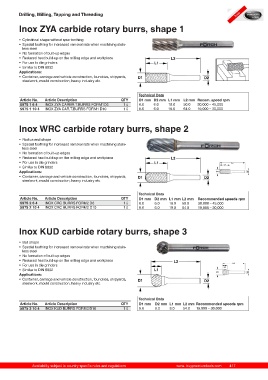

Inox ZYA carbide rotary burrs, shape 1

• Cylindrical shape without spur toothing
• Special toothing for increased removal rate when machining stain-
less steel
• No formation of built-up edges
• Reduced heat build-up on the milling edge and workpiece
• For use in die grinders
• Similar to DIN 8032
Applications:
• Container, carriage and vehicle construction, foundries, shipyards,
steelwork, mould construction, heavy industry etc.

Technical Data
Article No. Article Description QTY D1 mm D2 mm L1 mm L2 mm Recom. speed rpm
5975 1 6 4 INOX ZYA CARBR.T.BURRS FORM1D6 1 ü 6.0 6.0 18.0 50.0 30,000 – 45,000
5975 1 10 4 INOX ZYA CAR.T.BURRS FORM1 D10 1 ü 9.6 6.0 19.0 64.0 19,000 – 30,000

Inox WRC carbide rotary burrs, shape 2

• Radius end shape
• Special toothing for increased removal rate when machining stain-
less steel
• No formation of built-up edges
• Reduced heat build-up on the milling edge and workpiece
• For use in die grinders
• Similar to DIN 8032
Applications:
• Container, carriage and vehicle construction, foundries, shipyards,
steelwork, mould construction, heavy industry etc.

Technical Data
Article No. Article Description QTY D1 mm D2 mm L1 mm L2 mm Recommended speeds rpm
5975 2 6 4 INOX CRC BURRS FORM2 D6 1 ü 6.0 6.0 18.0 50.0 30,000 – 45,000
5975 2 10 4 INOX CRC BURRS FORM2 D10 1 ü 9.6 6.0 19.0 64.0 19,000 – 30,000

Inox KUD carbide rotary burrs, shape 3

• Ball shape
• Special toothing for increased removal rate when machining stain-
less steel
• No formation of built-up edges
• Reduced heat build-up on the milling edge and workpiece
• For use in die grinders
• Similar to DIN 8032
Applications:
• Container, carriage and vehicle construction, foundries, shipyards,
steelwork, mould construction, heavy industry etc.

Technical Data
Article No. Article Description QTY D1 mm D2 mm L1 mm L2 mm Recommended speeds rpm
5975 3 10 4 INOX KUD BURRS FORM3 D10 1 ü 9.6 6.0 8.0 54.0 19,000 – 30,000

Availability subject to country specific rules and regulations www. buypremiumtools.com 417
