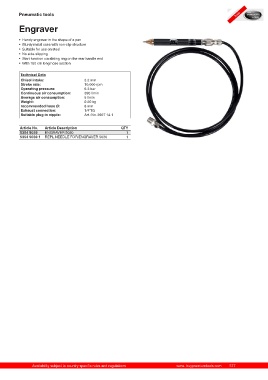

Page 577 - BPT Maintenance & Service Catalog

Pneumatic tools

Engraver

• Handy engraver in the shape of a pen
• Sturdy metal case with non-slip structure
• Suitable for use on steel
• No side-slipping
• Start function via sliding ring on the rear handle end
• With 150 cm long hose section

Technical Data
Chisel intake: 3.2 mm
Stroke rate: 10,000 rpm
Operating pressure: 6.3 bar
Continuous air consumption: 390 l/min
Average air consumption: 5 l/min
Weight: 0.20 kg
recommended hose Ø: 8 mm
Exhaust connection: 1/4” IG
Suitable plug-in nipple: Art.-No. 3927 14 1

Article No. Article Description QTY
5354 5030 ENGRAVER 5030 1
5354 5030 1 REPL.NEEDLE FOR ENGRAVER 5030 1

Availability subject to country specific rules and regulations www. buypremiumtools.com 577
