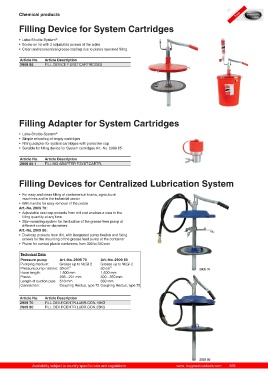

Page 856 - BPT Maintenance & Service Catalog

Chemical products

Filling Device for System Cartridges

• Lube-Shuttle-System ®
• Screw-on lid with 3 adjustable screws at the sides
• Clean and economical grease loading due to piston operated filling

Article No. Article Description
2909 85 FILL.DEVICE F.SYST.CARTRIDGES

Filling Adapter for System Cartridges

• Lube-Shuttle-System ®
• Simple reloading of empty cartridges
• Filling adapter for system cartridges with protective cap
• Suitable for filling device for System cartridges Art.-No. 2909 85

Article No. Article Description
2909 85 1 FILLING ADAPTER F.SYST.CARTR.

Filling Devices for Centralized Lubrication System

• For easy and clean filling of containers at trucks, agricultural
machines and in the industrial sector
• With handle for easy removal of the piston
Art.-No. 2909 70:
• Adjustable dust cap protects from dirt and enables a view to the
filling quantity at any time
• Star-mounting system for the fixation of the grease feed pump at
different container diameters
Art.-No. 2909 80:
• Dust cap protects from dirt, with integrated pump fixation and fixing
screws for the mounting of the grease feed pump at the container
• Piston for conical plastic containers from 300 to 350 mm

Technical Data
Pressure pump Art.-No. 2909 70 Art.-No. 2909 80
Pumping medium: Grease up to NLGI 2 Grease up to NLGI 2
Pressure pump / stroke: 30 cm³ 30 cm³
Hose length: 1,500 mm 1,500 mm
Piston: 266 - 291 mm 300 - 350 mm
Length of suction pipe: 510 mm 680 mm
Connection: Coupling Rectus, type 72 Coupling Rectus, type 72

Article No. Article Description
2909 70 FILL.DEV.F.CENTR.LUBR.CON.15KG
2909 80 FILL.DEV.F.CENTR.LUBR.CON.25KG

Availability subject to country specific rules and regulations www. buypremiumtools.com 856
