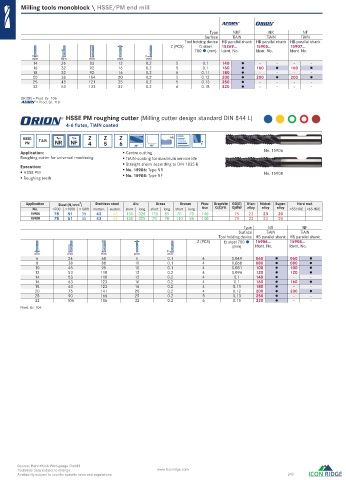

Page 240 - Icon Ridge Presents ORION

Milling tools monoblock \ HSSE/PM end mill

Type NRF NR NF
Surface TiAlN TiAlN TiAlN
Tool holding device HB parallel shank HB parallel shank HB parallel shank
Z (PCS) fz steel 15269... 15905... 15907...
700  (mm) Ident. No. Ident. No. Ident. No.
mm mm mm mm mm
14 26 83 12 0.2 5 0.1 140 - - - -
16 32 92 16 0.2 5 0.1 160 160 160
18 32 92 16 0.2 5 0.11 180 - - - -
20 38 104 20 0.2 5 0.12 200 200 200
25 45 121 25 0.2 5 0.13 250 - - - -
32 53 133 32 0.2 6 0.18 320 - - - -
ORION = Prod. Gr. 106
a = Prod. Gr. 118
HSSE PM roughing cutter ( Milling cutter design standard DIN 844 L )
4-6 fl utes, TiAlN coated

HSSE- TiAlN Typ Typ Z Z Z HB
PM NR NF 4 5 6 45°
Application:  Centre cutting No. 15906
Roughing cutter for universal machining.  TiAIN-coating for maximum service life
Execution:  Straight shank according to DIN 1835 B
 No. 15906: Type NR
 HSSE PM No. 15908
 Roughing teeth  No. 15908: Type NF

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15906 78 51 35 43 43 130 325 110 85 70 70 140 75 23 23 20
15908 78 51 35 43 43 130 325 70 70 110 85 140 75 23 23 20
Type NR NF
Surface TiAlN TiAlN
Tool holding device HB parallel shank HB parallel shank
Z (PCS) fz steel 700  15906... 15908...
(mm) Ident. No. Ident. No.
mm mm mm mm mm
6 24 68 6 0.1 4 0.049 060 060
8 38 88 10 0.1 4 0.068 080 080
10 45 95 10 0.1 4 0.081 100 100
12 53 110 12 0.2 4 0.094 120 120
14 53 110 12 0.2 4 0.1 140 - -
16 63 123 16 0.2 4 0.1 160 160
18 63 123 16 0.2 4 0.11 180 - -
20 75 141 20 0.2 4 0.12 200 200
25 90 166 25 0.2 5 0.13 250 - -
32 106 186 32 0.2 6 0.15 320 - -
Prod. Gr. 106

Source: Hahn+Kolb Werkzeuge GmbH
Technical data subject to change. www.iconridge.com
Availability subject to country specific rules and regulations. 240
