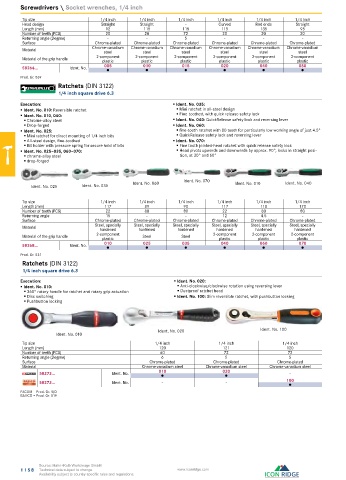

Page 358 - Industrial Tools Catalog (2)

Screwdrivers \ Socket wrenches, 1/4 inch
Tip size 1/4 inch 1/4 inch 1/4 inch 1/4 inch 1/4 inch 1/4 inch
Head design Straight Straight - Curved Rod ends Straight
Length (mm) 92 115 115 115 135 95
Number of teeth (PCS) 20 20 72 20 20 20
Returning angle (Degree) - - 5 - - -
Surface Chrome-plated Chrome-plated Chrome-plated Chrome-plated Chrome-plated Chrome-plated
Material Chrome-vanadium Chrome-vanadium Chrome-vanadium Chrome-vanadium Chrome-vanadium Chrome-vanadium
steel
steel
steel
steel
steel
steel
Material of the grip handle 2-component 2-component 2-component 2-component 2-component 2-component
plastic
plastic
plastic
plastic
plastic
plastic
58264... Ident. No. 005 010 015 020 040 050
●
●
●
●
●
●
Prod. Gr. 569
Ratchets (DIN 3122)
1/4 inch square drive 6.3
Execution: ƒ Ident. No. 035:
ƒ Ident. No. 010: Reversible ratchet ƒ Mini ratchet in all-steel design
ƒ Ident. No. 010, 040: ƒ Fine-toothed, with quick release safety lock
ƒ Chrome-alloy steel ƒ Ident. No. 040: QuickRelease safety look and reversing lever
ƒ Drop-forged ƒ Ident. No. 060:
ƒ Ident. No. 025: ƒ fine-tooth ratchet with 80 teeth for particularly low working angle of just 4.5°
ƒ Mini ratchet for direct mounting of 1/4 inch bits ƒ QuickRelease safety lock and reversing lever
ƒ All-steel design, fine-toothed ƒ Ident. No. 070:
ƒ Bit holder with pressure spring for secure hold of bits ƒ Fine tooth jointed-head ratchet with quick release safety lock
ƒ Ident. No. 025–035, 060–070: ƒ Head pivots upwards and downwards by approx. 90°, locks in straight posi-
ƒ chrome-alloy steel tion, at 30° and 60°
ƒ drop-forged
Ident. No. 070 Ident. No. 010 Ident. No. 040
Ident. No. 060
Ident. No. 025 Ident. No. 035
Tip size 1/4 inch 1/4 inch 1/4 inch 1/4 inch 1/4 inch 1/4 inch
Length (mm) 117 89 90 117 118 170
Number of teeth (PCS) 22 80 80 22 80 80
Returning angle 15 - - 12 4.5 -
Surface Chrome-plated Chrome-plated Chrome-plated Chrome-plated Chrome-plated Chrome-plated
Material Steel, specially Steel, specially Steel, specially Steel, specially Steel, specially Steel, specially
hardened
hardened
hardened
hardened
hardened
hardened
Material of the grip handle 2-component Steel Steel 2-component 2-component 2-component
plastic
plastic
plastic
plastic
58268... Ident. No. 010 025 035 040 060 070
●
●
●
●
●
●
Prod. Gr. 531
Ratchets (DIN 3122)
1/4 inch square drive 6.3
Execution: ƒ Ident. No. 020:
ƒ Ident. No. 010: ƒ Anti-clockwise/clockwise rotation using reversing lever
ƒ 360° rotary handle for ratchet and rotary grip actuation ƒ Dustproof ratchet head
ƒ Disc switching ƒ Ident. No. 100: Slim reversible ratchet, with pushbutton locking
ƒ Pushbutton locking
Ident. No. 020 Ident. No. 100
Ident. No. 010
Tip size 1/4 inch 1/4 inch 1/4 inch
Length (mm) 120 121 120
Number of teeth (PCS) 60 72 72
Returning angle (Degree) 6 5 5
Surface Chrome-plated Chrome-plated Chrome-plated
Material Chrome-vanadium steel Chrome-vanadium steel Chrome-vanadium steel
58273... Ident. No. 010 020 -
●
●
58273... Ident. No. - - 100
●
FACOM = Prod. Gr. 5JD
BAHCO = Prod. Gr. 519
Source: Hahn+Kolb Werkzeuge GmbH
1158 Technical data subject to change. www.iconridge.com
Availability subject to country specific rules and regulations.
