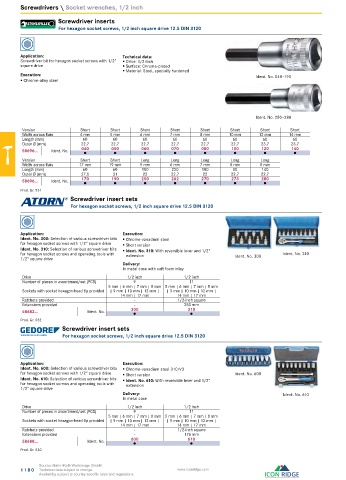

P. 380

Screwdrivers \ Socket wrenches, 1/2 inch
                    Screwdriver inserts
                     For hexagon socket screws, 1/2 inch square drive 12.5 DIN 3120




        Application:                      Technical data:
        Screwdriver bit for hexagon socket screws with 1/2“   ƒ Drive: 1/2 inch
        square drive                      ƒ Surface: Chrome-plated
                                          ƒ Material: Steel, specially hardened
        Execution:                                                                    Ident. No. 040–190
        ƒ Chrome-alloy steel






                                                                                      Ident. No. 250–280
        Version             Short     Short    Short     Short     Short     Short     Short     Short
        Width across flats  4 mm     5 mm      6 mm      7 mm      8 mm      10 mm     12 mm     14 mm
        Length (mm)         60        60        60        60        60        60        60        60
        Outer Ø (mm)        22.7      22.7      22.7      22.7      22.7     22.7      23.7      23.7
        58696...  Ident. No.  040     050       060       070       080       100      120       140
                             ●
                                       ●
                                                                                                  ●
                                                          ●
                                                                    ●
                                                 ●
                                                                                        ●
                                                                              ●
        Version             Short     Short     Long      Long     Long      Long      Long
        Width across flats  17 mm    19 mm     5 mm      6 mm      7 mm      8 mm      8 mm
        Length (mm)         60        60        180       220       100       80        140
        Outer Ø (mm)        27.5      31        22        22.7      22       22.7      22.7
        58696...  Ident. No.  170     190       250       262       270       273      280
                             ●
                                       ●
                                                                              ●
                                                 ●
                                                                    ●
                                                          ●
                                                                                        ●
        Prod. Gr. 531
                        Screwdriver insert sets
                         For hexagon socket screws, 1/2 inch square drive 12.5 DIN 3120
        Application:                      Execution:
        Ident. No. 300: Selection of various screwdriver bits   ƒ Chrome-vanadium steel
        for hexagon socket screws with 1/2“ square drive  ƒ Short version
        Ident. No. 310: Selection of various screwdriver bits   ƒ Ident. No. 310: With reversible lever and 1/2“
        for hexagon socket screws and operating tools with   extension         Ident. No. 300  Ident. No. 310
        1/2“ square drive
                                          Delivery:
                                          In metal case with soft foam inlay
        Drive                              1/2 inch           1/2 inch
        Number of pieces in assortment/set (PCS)  9             11
                                     5 mm | 6 mm | 7 mm | 8 mm  5 mm | 6 mm | 7 mm | 8 mm
        Sockets with socket hexagon-head tip provided  | 9 mm | 10 mm | 12 mm |   | 9 mm | 10 mm | 12 mm |
                                         14 mm | 17 mm      14 mm | 17 mm
        Ratchets provided                    -              1/2-inch square
        Extensions provided                  -                250 mm
        58682...              Ident. No.    300                310
                                                                ●
                                             ●
        Prod. Gr. 582
                      Screwdriver insert sets
                       For hexagon socket screws, 1/2 inch square drive 12.5 DIN 3120
        Application:                      Execution:
        Ident. No. 600: Selection of various screwdriver bits   ƒ Chrome-vanadium steel 31CrV3
        for hexagon socket screws with 1/2“ square drive  ƒ Short version      Ident. No. 600
        Ident. No. 610: Selection of various screwdriver bits   ƒ Ident. No. 610: With reversible lever and 1/2“
        for hexagon socket screws and operating tools with   extension
        1/2“ square drive
                                          Delivery:                                            Ident. No. 610
                                          In metal case
        Drive                              1/2 inch           1/2 inch
        Number of pieces in assortment/set (PCS)  9             11
                                     5 mm | 6 mm | 7 mm | 8 mm  5 mm | 6 mm | 7 mm | 8 mm
        Sockets with socket hexagon-head tip provided  | 9 mm | 10 mm | 12 mm |   | 9 mm | 10 mm | 12 mm |
                                         14 mm | 17 mm      14 mm | 17 mm
        Ratchets provided                    -              1/2-inch square
        Extensions provided                  -                175 mm
        58688...              Ident. No.    600                610
                                                                ●
                                             ●
        Prod. Gr. 530

              Source: Hahn+Kolb Werkzeuge GmbH
        1180  Technical data subject to change.                                           www.iconridge.com
              Availability subject to country specific rules and regulations.
