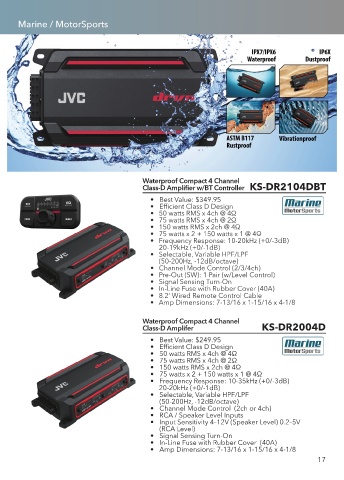

Page 17 - 2021 JVC Spring Dealer Pocket Guide
P. 17
Marine / MotorSports
Waterproof Compact 4 Channel
Class-D Amplifier w/BT Controller KS-DR2104DBT
• Best Value: $349.95
• Efficient Class D Design
• 50 watts RMS x 4ch @ 4Ω
• 75 watts RMS x 4ch @ 2Ω
• 150 watts RMS x 2ch @ 4Ω
• 75 watts x 2 + 150 watts x 1 @ 4Ω
• Frequency Response: 10-20kHz (+0/-3dB)
20-19kHz (+0/-1dB)
• Selectable, Variable HPF/LPF
(50-200Hz, -12dB/octave)
• Channel Mode Control (2/3/4ch)
• Pre-Out (SW): 1 Pair (w/Level Control)
• Signal Sensing Turn-On
• In-Line Fuse with Rubber Cover (40A)
• 8.2’ Wired Remote Control Cable
• Amp Dimensions: 7-13/16 x 1-15/16 x 4-1/8
Waterproof Compact 4 Channel
Class-D Amplifer KS-DR2004D
• Best Value: $249.95
• Efficient Class D Design
• 50 watts RMS x 4ch @ 4Ω
• 75 watts RMS x 4ch @ 2Ω
• 150 watts RMS x 2ch @ 4Ω
• 75 watts x 2 + 150 watts x 1 @ 4Ω
• Frequency Response: 10-35kHz (+0/-3dB)
20-20kHz (+0/-1dB)
• Selectable, Variable HPF/LPF
(50-200Hz, -12dB/octave)
• Channel Mode Control (2ch or 4ch)
• RCA / Speaker Level Inputs
• Input Sensitivity 4–12V (Speaker Level) 0.2–5V
(RCA Level)
• Signal Sensing Turn-On
• In-Line Fuse with Rubber Cover (40A)
• Amp Dimensions: 7-13/16 x 1-15/16 x 4-1/8
17
