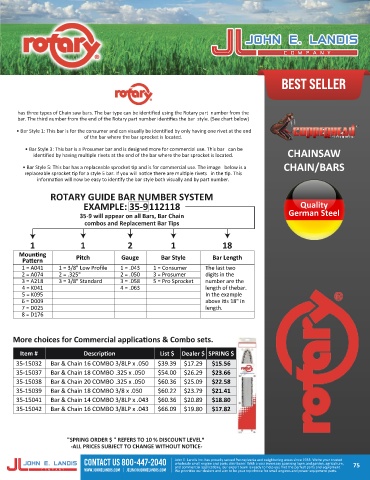

Page 77 - 2026 JEL SPRING ORDER & REFERENCE GUIDE

BEST SELLER

has three types of Chain saw bars. The bar type can be identified using the Rotary part number from the
bar. The third number from the end of the Rotary part number identifies the bar style. (See chart below)

• Bar Style 1: This bar is for the consumer and can visually be identified by only having one rivet at the end
of the bar where the bar sprocket is located.
• Bar Style 3: This bar is a Prosumer bar and is designed more for commercial use. This bar can be CHAINSAW
identified by having multiple rivets at the end of the bar where the bar sprocket is located.

• Bar Style 5: This bar has a replaceable sprocket tip and is for commercial use. The image below is a CHAIN/BARS
replaceable sprocket tip for a style 5 bar. If you will notice there are multiple rivets in the tip. This
information will now be easy to identify the bar style both visually and by part number.

ROTARY GUIDE BAR NUMBER SYSTEM
EXAMPLE: 35-9112118 Quality

35-9 will appear on all Bars, Bar Chain German Steel
combos and Replacement Bar Tips

1 1 2 1 18

Mounting Pitch Gauge Bar Style Bar Length
Pattern
1 = A041 1 = 3/8" Low Profile 1 = .043 1 = Consumer The last two
2 = A074 2 = .325" 2 = .050 3 = Prosumer digits in the
3 = A218 3 = 3/8" Standard 3 = .058 5 = Pro Sprocket number are the
4 = K041 4 = .063 length of thebar.
5 = K095 In the example
6 = D009 above itis 18" in
7 = D025 length.
8 = D176

More choices for Commercial applications & Combo sets.

Item # Description List $ Dealer $ SPRING $
35-15032 Bar & Chain 16 COMBO 3/8LP x .050 $39.39 $17.29 $15.56
35-15037 Bar & Chain 18 COMBO .325 x .050 $54.00 $26.29 $23.66
35-15038 Bar & Chain 20 COMBO .325 x .050 $60.36 $25.09 $22.58
35-15039 Bar & Chain 18 COMBO 3/8 x .050 $60.22 $23.79 $21.41
35-15041 Bar & Chain 14 COMBO 3/8LP x .043 $60.36 $20.89 $18.80
35-15042 Bar & Chain 16 COMBO 3/8LP x .043 $66.09 $19.80 $17.82

"SPRING ORDER $ " REFERS TO 10 % DISCOUNT LEVEL*
-ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE-
