P. 5

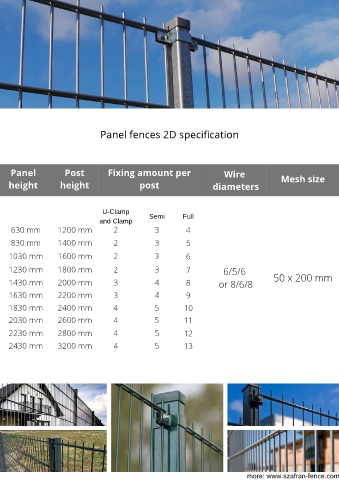

Panel fences 2D specification
Panel Post Fixing amount per Wire
height height post diameters Mesh size
U-Clamp
and Clamp Semi Full
630 mm 1200 mm 2 3 4
830 mm 1400 mm 2 3 5
1030 mm 1600 mm 2 3 6
1230 mm 1800 mm 2 3 7 6/5/6
1430 mm 2000 mm 3 4 8 or 8/6/8 50 x 200 mm
1630 mm 2200 mm 3 4 9
1830 mm 2400 mm 4 5 10
2030 mm 2600 mm 4 5 11
2230 mm 2800 mm 4 5 12
2430 mm 3200 mm 4 5 13
