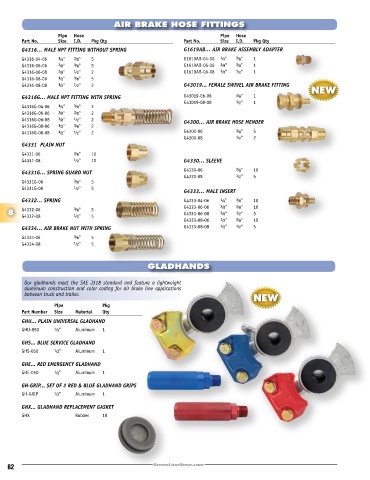

Page 84 - 2022FittingsCatalog

AIR BRAKE HOSE FITTINGS

Pipe Hose Pipe Hose
Part No. Size I.D. Pkg Qty Part No. Size I.D. Pkg Qty
G4316… MALE NPT FITTING WITHOUT SPRING G1619AB… AIR BRAKE ASSEMBLY ADAPTER
G4316-04-06 1 ⁄4" 3 ⁄8" 5 G1619AB-04-06 1 ⁄4" 3 ⁄8" 1
G4316-06-06 3 ⁄8" 3 ⁄8" 5 G1619AB-06-06 3 ⁄8" 3 ⁄8" 1
G4316-06-08 3 ⁄8" 1 ⁄2" 2 G1619AB-06-08 3 ⁄8" 1 ⁄2" 1
G4316-08-06 1 ⁄2" 3 ⁄8" 5
G4316-08-08 1 ⁄2" 1 ⁄2" 2 G43019... FEMALE SWIVEL AIR BRAKE FITTING
G4316G… MALE NPT FITTING WITH SPRING G43019-06-06 3 ⁄8" 1
G43019-08-08 1 ⁄2" 1
G4316G-04-06 1 ⁄4" 3 ⁄8" 2
G4316G-06-06 3 ⁄8" 3 ⁄8" 2
G4316G-06-08 3 ⁄8" 1 ⁄2" 2 G4300… AIR BRAKE HOSE MENDER
G4316G-08-06 1 ⁄2" 3 ⁄8" 2
G4316G-08-08 1 ⁄2" 1 ⁄2" 2 G4300-06 3 ⁄8" 5
G4300-08 1 ⁄2" 2
G4331 PLAIN NUT
G4331-06 3 ⁄8" 10
G4331-08 1 ⁄2" 10 G4330… SLEEVE

G4331G… SPRING GUARD NUT G4330-06 3 ⁄8" 10
G4330-08 1 ⁄2" 5
G4331G-06 3 ⁄8" 5
G4331G-08 1 ⁄2" 5
G4333… MALE INSERT
G4332… SPRING G4333-04-06 1 ⁄4" 3 ⁄8" 10
G4333-06-06 3 ⁄8" 3 ⁄8" 10
3 ⁄8"
8 G4332-06 5 G4333-06-08 3 ⁄8" 1 ⁄2" 5
G4332-08 1 ⁄2" 5
G4333-08-06 1 ⁄2" 3 ⁄8" 10
G4334… AIR BRAKE NUT WITH SPRING G4333-08-08 1 ⁄2" 1 ⁄2" 5
G4334-06 3 ⁄8" 5
G4334-08 1 ⁄2" 5

GLADHANDS

Our gladhands meet the SAE J318 standard and feature a lightweight
aluminum construction and color coding for air brake line applications
between truck and trailer.
Pipe Pkg
Part Number Size Material Qty
GHU... PLAIN UNIVERSAL GLADHAND
GHU-050 1 ⁄2" Aluminum 1

GHS... BLUE SERVICE GLADHAND
GHS-050 1 ⁄2" Aluminum 1
GHE... RED EMERGENCY GLADHAND
GHE-050 1 ⁄2" Aluminum 1

GH-GRIP... SET OF 2 RED & BLUE GLADHAND GRIPS
GH-GRIP 1 ⁄2" Aluminum 1
GHX... GLADHAND REPLACEMENT GASKET
GHX Rubber 10
