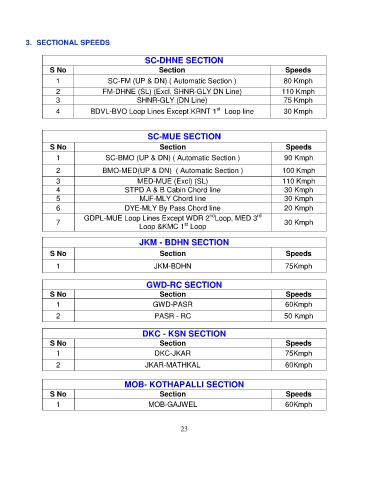

3. SECTIONAL SPEEDS

SC-DHNE SECTION
S No Section Speeds
1 SC-FM (UP & DN) ( Automatic Section ) 80 Kmph
2 FM-DHNE (SL) (Excl. SHNR-GLY DN Line) 110 Kmph
3 SHNR-GLY (DN Line) 75 Kmph
st
4 BDVL-BVO Loop Lines Except KRNT 1 Loop line 30 Kmph

SC-MUE SECTION

S No Section Speeds
1 SC-BMO (UP & DN) ( Automatic Section ) 90 Kmph
2 BMO-MED(UP & DN) ( Automatic Section ) 100 Kmph
3 MED-MUE (Excl) (SL) 110 Kmph
4 STPD A & B Cabin Chord line 30 Kmph
5 MJF-MLY Chord line 30 Kmph
6 DYE-MLY By Pass Chord line 20 Kmph
nd
rd
GDPL-MUE Loop Lines Except WDR 2 Loop, MED 3
7 st 30 Kmph
Loop &KMC 1 Loop

JKM - BDHN SECTION
S No Section Speeds

1 JKM-BDHN 75Kmph

GWD-RC SECTION
S No Section Speeds
1 GWD-PASR 60Kmph
2 PASR - RC 50 Kmph

DKC - KSN SECTION
S No Section Speeds
1 DKC-JKAR 75Kmph
2 JKAR-MATHKAL 60Kmph

MOB- KOTHAPALLI SECTION
S No Section Speeds

1 MOB-GAJWEL 60Kmph

23
