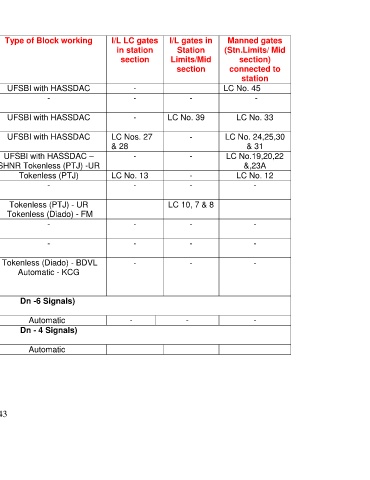

Sl.   Station / LC   Std. of   Class   Panel / EI   MACLS   Type of Block working   I/L LC gates   I/L gates in   Manned gates
 No.   Inter   with VDU   / MAUQ        in station          Station        (Stn.Limits/ Mid
 locking                                 section         Limits/Mid             section)
                                                           section           connected to
                                                                                 station

 30.  Gollapalli   II®   B   EI-VDU   MACLS   UFSBI with HASSDAC    -      LC No. 45
 31.  LC No. 39 @   -   Spl   Mini Panel   MACLS   -   -        -                    -
 km77/900-78/000
 32.  Balanagar   B   EI-VDU   MACLS   UFSBI with HASSDAC   -   LC No. 39      LC No. 33
 III®

 33.  Shadnagar   B   EI-VDU   MACLS   UFSBI with HASSDAC   LC Nos. 27   -   LC No. 24,25,30
 II®
                                      & 28                                         & 31
 34.  Timmapur   B   Panel   MACLS   UFSBI with HASSDAC –  -    -           LC No.19,20,22
 II®
 SHNR Tokenless (PTJ) -UR                                                         &,23A
 35.  Umdanagar   II®   B   Panel   MACLS   Tokenless (PTJ)   LC No. 13   -    LC No. 12
 36.  LC 10 @ KM 23/0-  -   Spl   Mini Panel   MACLS   -   -    -                    -
 100
 37.  Budvel   B   Panel   MACLS   Tokenless (PTJ) - UR         LC 10, 7 & 8
 II®
    Tokenless (Diado) - FM
 38.  LC No.8 @ KM   -   Spl   Mini Panel   MACLS   -   -       -                    -
 19/100-200
 39.  LC No.7 @ KM   -   Spl   Mini Panel   MACLS   -   -       -                    -
 17/600-700
 40.  Falaknuma   II®   Spl   Panel   MACLS     Tokenless (Diado) - BDVL    -   -    -
 (Route   Automatic - KCG
 Setting
 Type)
 41.  KCG – FM   Automatic Block Section      ( Up -7 Signals          Dn -6 Signals)

 42.  Kacheguda   II®   Spl   Panel   MACLS   Automatic   -    -                     -
 43.  KCG – STPD‟A‟   Automatic Block Section      ( Up -3 Signals          Dn - 4 Signals)

 44.  Sitafalmandi‟A‟   II®   Spl   Panal   MACLS   Automatic










 43
