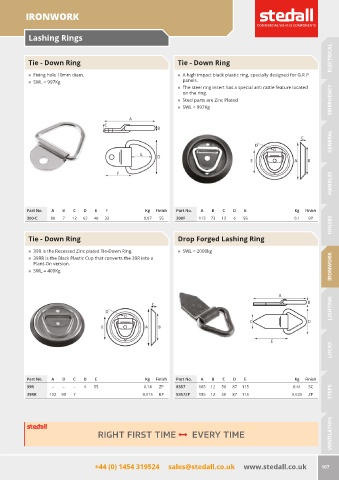

P. 109

IRONWORK



           Lashing Rings

                                                                                                                     ELECTRICAL

           Tie - Down Ring                                     Tie - Down Ring

           „  Fixing hole 10mm diam.                           „  A high impact black plastic ring, specially designed for G.R.P
           „  SWL = 997Kg                                        panels.
                                                               „  The steel ring insert has a special anti rattle feature located
                                                                 on the ring.
                                                               „  Steel parts are Zinc Plated                        EMERGENCY
                                                               „  SWL = 997Kg



                                                                                                                     GENERAL








                                                                                                                     HANDLES






          Part No.  A  B   C  D   E   F             Kg  Finish  Part No.  A  B  C  D   E                Kg  Finish
          300-C    80  7  12  62  40  33            0.07  SS   300F    113  73  13  6  55               0.1  BP
                                                                                                                     HINGES

           Tie - Down Ring                                     Drop Forged Lashing Ring


           „  39R is the Recessed Zinc plated Tie-Down Ring.   „  SWL = 2000kg
           „  39RR is the Black Plastic Cup that converts the 39R into a
             Plant-On version.                                                                                       IRONWORK
           „  SWL = 400Kg



                                                                                                                     LIGHTING








                                                                                                                     LOCKS





          Part No.  A  B   C  D   E                 Kg  Finish  Part No.  A  B  C  D   E                Kg  Finish
          39R      –   –   –   6  55                0.14  ZP   8357    185  12  50  87  115             0.61  SC
          39RR    102  90  7                       0.015  BP   8357ZP  185  12  50  87  115             0.625  ZP    STEPS



                                                                                                                     VENTILATION

                                   RIGHT FIRST TIME   EVERY TIME





                                  +44 (0) 1454 319524     sales@stedall.co.uk     www.stedall.co.uk               107
