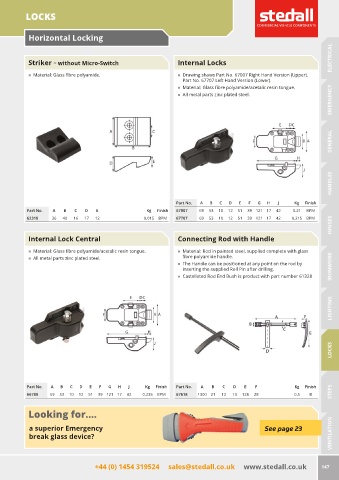

Page 149 - Stedall Parts Catalogue 14th Edition

LOCKS

Horizontal Locking

ELECTRICAL

Striker — without Micro-Switch Internal Locks

„ Material: Glass fibre polyamide. „ Drawing shows Part No. 67007 Right Hand Version (Upper).
Part No. 67707 Left Hand Version (Lower).
EMERGENCY
„ Material: Glass fibre polyamide/acetalic resin tongue.
„ All metal parts zinc plated steel.

GENERAL

HANDLES

Part No. A B C D E F G H J Kg Finish
Part No. A B C D E Kg Finish 67007 69 53 10 12 51 39 121 17 42 0.21 BPM
62318 36 40 16 17 12 0.015 BPM 67707 69 53 10 12 51 39 121 17 42 0.215 BPM
HINGES

Internal Lock Central Connecting Rod with Handle

„ Material: Glass fibre polyamide/acetalic resin tongue. „ Material: Rod in painted steel, supplied complete with glass
„ All metal parts zinc plated steel. fibre polyamide handle.
„ The Handle can be positioned at any point on the rod by
inserting the supplied Roll Pin after drilling. IRONWORK
„ Castellated Rod End Bush is product with part number 61328

LIGHTING

LOCKS

Part No. A B C D E F G H J Kg Finish Part No. A B C D E F Kg Finish
66788 69 53 10 12 51 39 121 17 42 0.235 BPM 67618 1300 21 12 13 128 28 0.5 B STEPS

Looking for....

a superior Emergency See page 23
break glass device? VENTILATION

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 147
