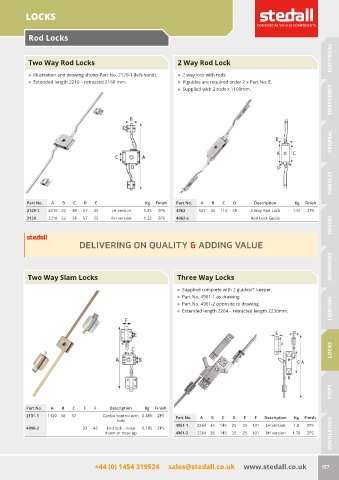

Page 159 - Stedall Parts Catalogue 14th Edition

LOCKS

Rod Locks

ELECTRICAL

Two Way Rod Locks 2 Way Rod Lock

„ Illustration and drawing shows Part No. 2129-1 (left-hand). „ 2 way lock with rods
„ Extended length 2210 – retracted 2160 mm. „ If guides are required order 2 x Part No. E.
EMERGENCY
„ Supplied with 2 rods x 1100mm.

GENERAL

HANDLES

Part No. A B C D E Kg Finish Part No. A B C D Description Kg Finish
2129-1 2210 22 38 57 25 LH version 1.35 ZPS 4962 127 45 114 28 2 Way Rod Lock 1.61 ZPS
HINGES
2129 2210 22 38 57 25 RH version 1.32 ZPS 4962-e Rod Lock Guide

DELIVERING ON QUALITY & ADDING VALUE
IRONWORK

Two Way Slam Locks Three Way Locks

„ Supplied complete with 2 guides/1 keeper.
„ Part No. 4961-1 as drawing.
„ Part No. 4961-2 opposite to drawing.
„ Extended length 2264 – retracted length 2230mm. LIGHTING

LOCKS

STEPS

Part No. A B C E F Description Kg Finish
2131-1 1320 38 57 Centre control with 0.485 ZPS Part No. A B C D E F Description Kg Finish
rods
4961-1 2264 36 145 25 25 101 LH version 1.8 ZPS
4998-2 33 45 End lock - nose 0.185 ZPS
down or nose up 4961-2 2264 36 145 25 25 101 RH version 1.78 ZPS VENTILATION

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 157
