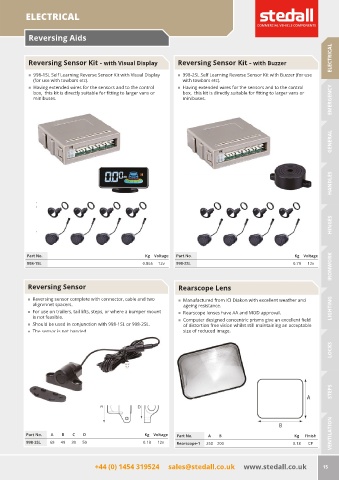

Page 17 - Stedall Parts Catalogue 14th Edition

ELECTRICAL

Reversing Aids

ELECTRICAL

Reversing Sensor Kit - with Visual Display Reversing Sensor Kit - with Buzzer

„ 998-1SL Self Learning Reverse Sensor Kit with Visual Display „ 998-2SL Self Learning Reverse Sensor Kit with Buzzer (for use
(for use with towbars etc). with towbars etc).
„ Having extended wires for the sensors and to the control „ Having extended wires for the sensors and to the control
box, this kit is directly suitable for fitting to larger vans or box, this kit is directly suitable for fitting to larger vans or
minibuses. minibuses. EMERGENCY

GENERAL

HANDLES

HINGES

IRONWORK
Part No. Kg Voltage Part No. Kg Voltage
998-1SL 0.865 12v 998-2SL 0.79 12v

Reversing Sensor Rearscope Lens

„ Reversing sensor complete with connector, cable and two „ Manufactured from ICI Diakon with excellent weather and
alignmnet spacers. ageing resistance.
„ For use on trailers, tail lifts, steps, or where a bumper mount „ Rearscope lenses have AA and MOD approval. LIGHTING
is not feasible. Computer designed concentric prisms give an excellent field
„ Should be used in conjunction with 998-1SL or 998-2SL. „ of distortion free vision whilst still maintaining an acceptable
„ The sensor is not handed. size of reduced image.

LOCKS

STEPS

VENTILATION

Part No. A B C D Kg Voltage Part No. A B Kg Finish
998-3SL 68 49 30 50 0.13 12v Rearscope-1 250 200 0.18 CP

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 15
