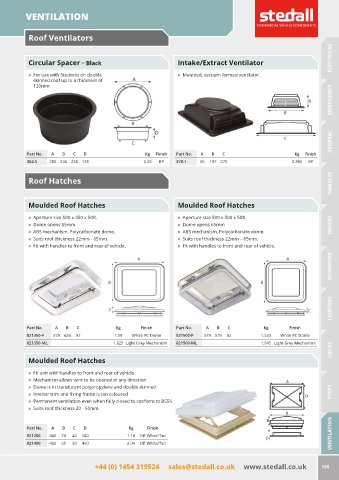

Page 197 - Stedall Parts Catalogue 14th Edition
P. 197
VENTILATION
Roof Ventilators
ELECTRICAL
Circular Spacer — Black Intake/Extract Ventilator
For use with Stedvent on double Moulded, vacuum formed ventilator.
skinned roof up to a thickness of
120mm
EMERGENCY
GENERAL
Part No. A B C D Kg Finish Part No. A B C Kg Finish
352-5 280 246 228 128 0.26 BP 370-1 65 197 270 0.385 BP
HANDLES
Roof Hatches
Moulded Roof Hatches Moulded Roof Hatches
Aperture size 500 x 350 x 50R. Aperture size 500 x 500 x 50R.
Dome opens 65mm Dome opens 65mm HINGES
ABS mechanism, Polycarbonate dome. ABS mechanism, Polycarbonate dome.
Suits roof thickness 22mm - 65mm. Suits roof thickness 22mm – 65mm.
Fit with handles to front and rear of vehicle. Fit with handles to front and rear of vehicle.
IRONWORK
LIGHTING
Part No. A B C Kg Finish Part No. A B C Kg Finish
821350-P 579 424 97 1.09 White PC Dome 821500-P 579 579 82 1.525 White PC Dome
821350-ML 1.825 Light Grey Mechanism 821500-ML 1.945 Light Grey Mechanism
LOCKS
Moulded Roof Hatches
Fit unit with handles to front and rear of vehicle
Mechanism allows vent to be opened in any direction
Dome is in translucent polypropylene and double skinned
Interior trim and fixing frame is tan coloured STEPS
Permanent ventilation even when fully closed to conform to BS5601
Suits roof thickness 20 - 50mm
VENTILATION
Part No. A B C D Kg Finish
821280 340 70 40 340 1.18 Off White/Tan
821400 460 65 30 460 2.04 Off White/Tan
