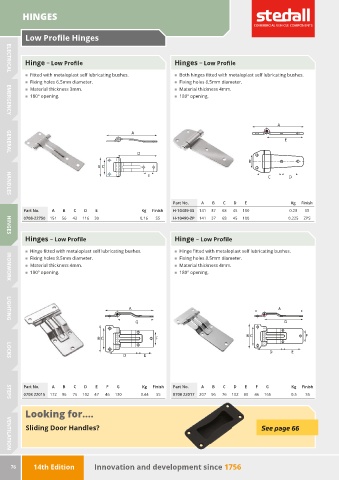

Page 78 - Stedall Parts Catalogue 14th Edition

HINGES

Low Profile Hinges

Hinge — Low Profile Hinges — Low Profile

ELECTRICAL
„ Fitted with metaloplast self lubricating bushes. „ Both hinges fitted with metaloplast self lubricating bushes.
„ Fixing holes 6.5mm diameter. „ Fixing holes 6.5mm diameter.
„ Material thickness 3mm. „ Material thickness 4mm.
„ 180º opening. „ 180º opening.

EMERGENCY
A
A
E

D
GENERAL
B
B C
E C D

HANDLES
Part No. A B C D E Kg Finish
Part No. A B C D E Kg Finish H-10489-SS 141 37 68 45 100 0.23 SS

0708-22750 151 56 42 116 30 0.16 SS H-10490-ZP 141 37 68 45 100 0.225 ZPS

HINGES
Hinges — Low Profile Hinge — Low Profile

„ Hinge fitted with metaloplast self lubricating bushes. „ Hinge fitted with metaloplast self lubricating bushes.
„ Fixing holes 8.5mm diameter. „ Fixing holes 8.5mm diameter.
„ Material thickness 4mm. „ Material thickness 4mm.
„ 180º opening. „ 180º opening.

IRONWORK

A A

G G
LIGHTING
B C F
B C F
D E
D E
LOCKS

Part No. A B C D E F G Kg Finish Part No. A B C D E F G Kg Finish
0708 22015 172 96 76 102 47 46 130 0.44 SS 0708 22017 207 96 76 102 80 46 165 0.5 SS
STEPS
Looking for....

Sliding Door Handles? See page 66
