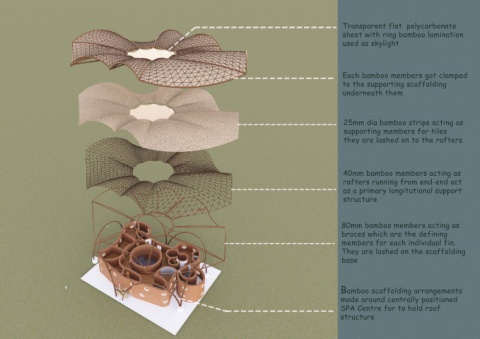

Transparent flat polycarbonate
sheet with ring bamboo lamination
used as skylight
Each bamboo members got clamped
to the supporting scaffolding
underneath them
25mm dia bamboo strips scting as
supporting members for tiles
they are lashed on to the rafters
40mm bamboo members acting as
rafters running from end-end act
as a primary longitutional support
structure
80mm bamboo members acting as
braces which are the defining
members for each individual fin.
They are lashed on the scaffolding
base
B amboo scaffolding arrangements
made around centrally positioned
SPA Centre for to hold roof
structure
