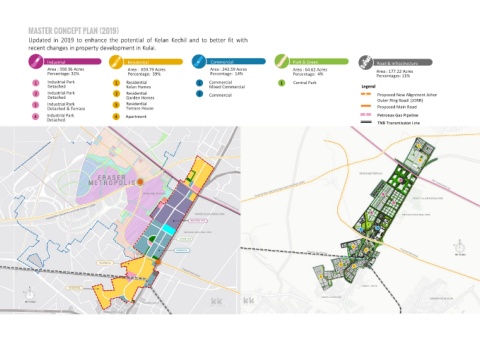

MASTER CONCEPT PLAN (2019)

             Updated in 2019 to enhance the potential of Kelan Kechil and to better fit with
             recent changes in property development in Kulai.


                     Industrial                         Residential                         Commercial                         Park & Green                        Road & Infrastructure
                                                                                                                               Area
                     Area : 358.36 Acres                Area :  659.79 Acres               Area : 242.59 Acres                 Area : 64.62 Acres                  Area : 177.22 Acres
                     Percentage: 32%                    Percentage:  39%                   Percentage:  14%                    Percentage:  4%                     Percentages: 11%

                1    Industrial Park               1   Residential                    1    Commercial                     1    Central Park
                     Detached                          Kelan Homes                         Mixed Commercial                                                 Legend
                2    Industrial Park               2   Residential                    2    Commercial                                                              Proposed New Alignment Johor
                     Detached                          Garden Homes                                                                                                Outer Ring Road  (JORR)
                3    Industrial Park              3    Residential                                                                                                 Proposed Main Road
                     Detached & Terrace                Terrace House
                4    Industrial Park              4    Apartment                                                                                                   Petronas Gas Pipeline
                     Detached
                                                                                                                                                                   TNB Transmission Line
