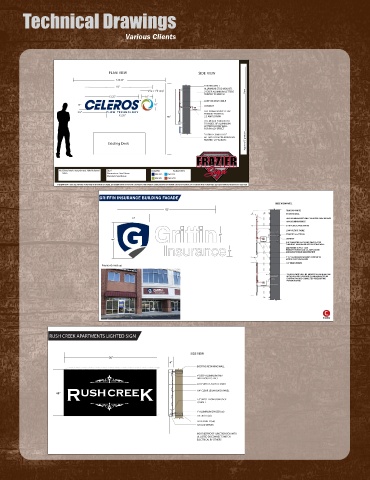

Technical Drawings
Various Clients
PLAN VIEW SIDE VIEW
124.25”
92” EXISTING WALL
2”w x 1”h vinyl ALUMINUM STUD MOUNTS Date Date
2” DEEP ALUMINUM LETTERS
PAINTED TO MATCH
13.25” 16”
LOW VOLTAGE CABLE
14” 16” CONDUIT
2.5” LED POWER SUPPLY 120V
PRIMARY POWER &
42.25” 96” 2.5 AMPS DRAW
LED MODULE MOUNTED
TO INSIDE OF ALUMINUM
LETTERS FACING WALL
FOR “HALO” EFFECT
“FLOW TECHNOLOGY”
LETTERS TO BE PIN-MOUNTED
PAINTED 1/2” ACRLYIC
Existing Desk Approval Signature
Job: Celeros interior reception area. Halo-lit channel Qty: 1 COLORS SCALE: NTS
letters Dimensions: See Above PMS 281C PMS 299C
Materials: See Above
PMS 383C PMS 1675C
Copyright© 2020 Frazier Sign. All works of authorship on this medium are original, and all rights thereto are reserved. Conveyance of this medium to a third party does not constitute a license to reproduce, use or copy this work of authorship in any manner without permission from Frazier Sign
GRIFFIN INSURANCE BUILDING FACADE
SIDE VIEW-NTS.
122” TRIM CAP-WHITE
EXISTING WALL
39” .063 ALUMINUM RETURN 1” PAINTED DARK BRONZE
.090 ALUMINUM BACK
3/16 ACRYLIC FACE-WHITE
LOW VOLTAGE CABLE
21” PRIMARY ELECTRICAL
44” CONDUIT
3/8” DIAMETER BY 5” LONG ZINC PLATED
THRUBOLT HARDWARE INTO EXISTING WALL
LED POWER SUPPLY 120V
13” PRIMARY POWER AND 2.5 AMPS DRAW
LED LOW VOLTAGE ILLUMINATION
7’ X 7’ ALUMINUM RACEWAY PAINTED TO
MATCH EXISTING FACADE
1/4” DRAIN HOLES
Proposed mock up
“SHIELD LOGO” WILL BE LIGHTED ALUMINUM CAN
WITH VINYLED PLEXI FACE. FLUSH MOUNTED TO
EXISTING FACADE CONNECTED TO EXSISTING
POWER SOURCE
RUSH CREEK APARTMENTS LIGHTED SIGN
SIDE VIEW
96”
4”
EXISTING RETAINING WALL
4” DEEP ALUMINUM PAN
WITH ROUTED FACE
3/16” WHITE ACRYLIC PANEL
48” R ushcree K 1/4” CLEAR LEXAN BACK PANEL
1.5” SPACE FROM SIGN BACK
TO WALL
1” ALUMINUM SPACER x6
LAG BOLT (x6)
LEAD SHIELD x6
12V LED DRIVER
WEATHERPROOF JUNCTION BOX WITH
UL LISTED DISCONNECT SWITCH
ELECTRICAL BY OTHERS
