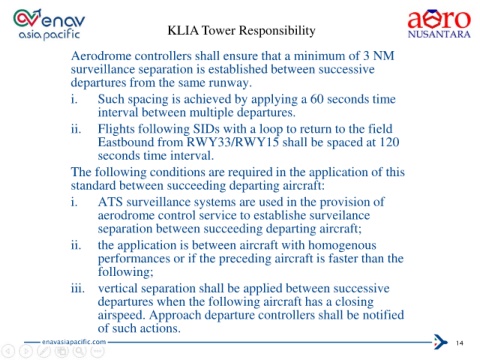

KLIA Tower Responsibility

Aerodrome controllers shall ensure that a minimum of 3 NM

surveillance separation is established between successive
departures from the same runway.

i. Such spacing is achieved by applying a 60 seconds time

interval between multiple departures.

ii. Flights following SIDs with a loop to return to the field
Eastbound from RWY33/RWY15 shall be spaced at 120

seconds time interval.

The following conditions are required in the application of this
standard between succeeding departing aircraft:

i. ATS surveillance systems are used in the provision of

aerodrome control service to establishe surveilance
separation between succeeding departing aircraft;

ii. the application is between aircraft with homogenous

performances or if the preceding aircraft is faster than the

following;

iii. vertical separation shall be applied between successive
departures when the following aircraft has a closing

airspeed. Approach departure controllers shall be notified
of such actions.
