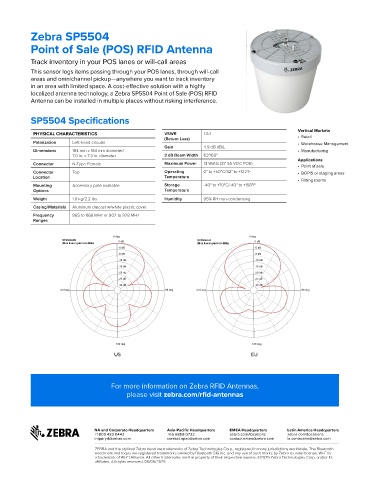

Zebra SP5504
Point of Sale (POS) RFID Antenna

Track inventory in your POS lanes or will-call areas
This sensor logs items passing through your POS lanes, through will-call
areas and omnichannel pickup—anywhere you want to track inventory
in an area with limited space. A cost-effective solution with a highly
localized antenna technology, a Zebra SP5504 Point of Sale (POS) RFID
Antenna can be installed in multiple places without risking interference.

SP5504 Specifications

Vertical Markets
PHYSICAL CHARACTERISTICS VSWR 1.5:1
(Return Loss) • Retail
Polarization Left-hand circular • Warehouse Management
Gain 4.9 dB dBiL
Dimensions 184 mm x 184 mm diameter/ • Manufacturing
7.0 in. x 7.3 in. diameter 3 dB Beam Width 63°/60°
Applications
Connector N-Type Female Maximum Power 13 Watts (37-55 VDC POE) • Point of sale
Connector Top Operating 0° to +50°C/32° to +122°F • BOPIS or staging areas
Location Temperature
• Fitting rooms
Mounting Accessory pole available Storage -40° to +70°C/-40° to +158°F
Options Temperature
Weight 1.0 kg/2.2 lbs Humidity 95% RH non-condensing
Casing/Materials Aluminum diecast w/white plastic cover
Frequency 865 to 868 MHz or 902 to 928 MHz
Ranges

0 deg 0 deg
SP5504-US SP5504-EU
(Max linear gain=4.9 dBiL) 5 dB (Max linear gain=4.9 dBiL) 5 dB
-0 dB -0 dB
-5 dB -5 dB
-10 dB -10 dB
-15 dB -15 dB
-20 dB -20 dB
-25 dB -25 dB
-30 dB -30 dB
270 deg 90 deg 270 deg 90 deg

180 deg 180 deg
US EU

For more information on Zebra RFID Antennas,
please visit zebra.com/rfid-antennas
