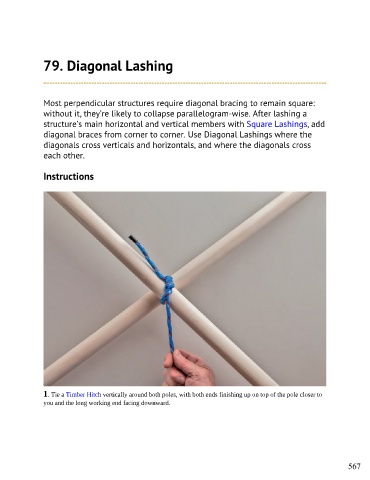

79. Diagonal Lashing






               Most perpendicular structures require diagonal bracing to remain square:

               without it, they’re likely to collapse parallelogram-wise. After lashing a
               structure’s main horizontal and vertical members with Square Lashings, add
               diagonal braces from corner to corner. Use Diagonal Lashings where the
               diagonals cross verticals and horizontals, and where the diagonals cross
               each other.



               Instructions











































               1. Tie a Timber Hitch vertically around both poles, with both ends finishing up on top of the pole closer to
               you and the long working end facing downward.
