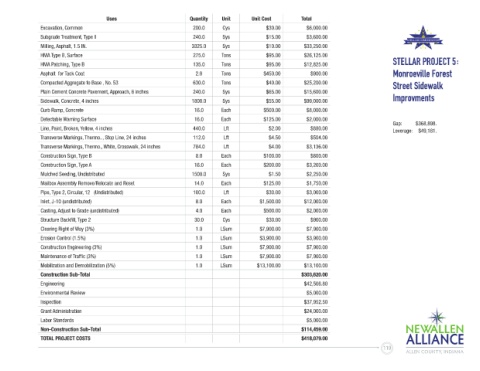

P. 119
Uses Quantity Unit Unit Cost Total
Excavation, Common 200.0 Cys $30.00 $6,000.00
Subgrade Treatment, Type II 240.0 Sys $15.00 $3,600.00
Milling, Asphalt, 1.5 IN. 3325.0 Sys $10.00 $33,250.00
HMA Type B, Surface 275.0 Tons $95.00 $26,125.00
HMA Patching, Type B 135.0 Tons $95.00 $12,825.00 STELLAR PROJECT 5:
Asphalt for Tack Coat 2.0 Tons $450.00 $900.00 Monroeville Forest
Compacted Aggregate fo Base , No. 53 630.0 Tons $40.00 $25,200.00 Street Sidewalk
Plain Cement Concrete Pavement, Approach, 6 inches 240.0 Sys $65.00 $15,600.00
Sidewalk, Concrete, 4 inches 1800.0 Sys $55.00 $99,000.00 Improvments
Curb Ramp, Concrete 16.0 Each $500.00 $8,000.00
Detectable Warning Surface 16.0 Each $125.00 $2,000.00
Gap: $368,898.
Line, Paint, Broken, Yellow, 4 inches 440.0 Lft $2.00 $880.00 Leverage: $49,181.
Transverse Markings, Thermo.., Stop Line, 24 inches 112.0 Lft $4.50 $504.00
Transverse Markings, Thermo., White, Crosswalk, 24 inches 784.0 Lft $4.00 $3,136.00
Construction Sign, Type B 8.0 Each $100.00 $800.00
Construction Sign, Type A 16.0 Each $200.00 $3,200.00
Mulched Seeding, Undistributed 1500.0 Sys $1.50 $2,250.00
Mailbox Assembly Remove/Relocate and Reset 14.0 Each $125.00 $1,750.00
Pipe, Type 2, Circular, 12 (Undistributed) 100.0 Lft $30.00 $3,000.00
Inlet, J-10 (undistributed) 8.0 Each $1,500.00 $12,000.00
Casting, Adjust to Grade (undistributed) 4.0 Each $500.00 $2,000.00
Structure Backfill, Type 2 30.0 Cys $30.00 $900.00
Clearing Right of Way (3%) 1.0 LSum $7,900.00 $7,900.00
Erosion Control (1.5%) 1.0 LSum $3,900.00 $3,900.00
Construction Engineering (3%) 1.0 LSum $7,900.00 $7,900.00
Maintenance of Traffic (3%) 1.0 LSum $7,900.00 $7,900.00
Mobilization and Demobilization (5%) 1.0 LSum $13,100.00 $13,100.00
Construction Sub-Total $303,620.00
Engineering $42,506.80
Environmental Review $5,000.00
Inspection $37,952.50
Grant Administration $24,000.00
Labor Standards $5,000.00
Non-Construction Sub-Total $114,459.00
TOTAL PROJECT COSTS $418,079.00
