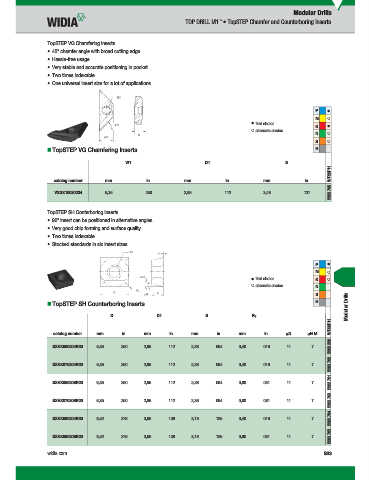

Page 1483 - Master Catalog 2017, Inch
P. 1483
Modular Drills
™
TOP DRILL M1 • TopSTEP Chamfer and Counterboring Inserts
TopSTEP VG Chamfering Inserts
• 45° chamfer angle with broad cutting edge.
• Hassle-free usage.
• Very stable and accurate positioning in pocket.
• Two times indexable.
• One universal insert size for a lot of applications.
P
M
first choice
K
alternate choice
N
S
TopSTEP VG Chamfering Inserts H
W1 D1 S
WP20PH
catalog number mm in mm in mm in
VXGX10030234 6,35 .250 2,85 .112 3,48 .137 5983706
TopSTEP SH Conterboring Inserts
• 90° insert can be positioned in alternative angles.
• Very good chip forming and surface quality.
• Two times indexable.
• Stocked standards in six insert sizes.
P
M
first choice K
alternate choice
N
S
TopSTEP SH Counterboring Inserts H Modular Drills
D D1 S R¡
WP20PH
catalog number mm in mm in mm in mm in _N _N M
SXHX060204R20 6,35 .250 2,85 .112 2,38 .094 0,40 .016 11 7 5983390
5983702
SXHX070304R20 6,35 .250 2,85 .112 2,38 .094 0,40 .016 11 7
SXHX060208R20 6,35 .250 2,85 .112 2,38 .094 0,80 .031 11 7 5983701
5983703
SXHX070308R20 6,35 .250 2,85 .112 2,38 .094 0,80 .031 11 7
SXHX090304R20 9,52 .375 3,50 .138 3,18 .125 0,40 .016 11 7 5983704
5983705
SXHX090308R20 9,52 .375 3,50 .138 3,18 .125 0,80 .031 11 7
widia.com S23
