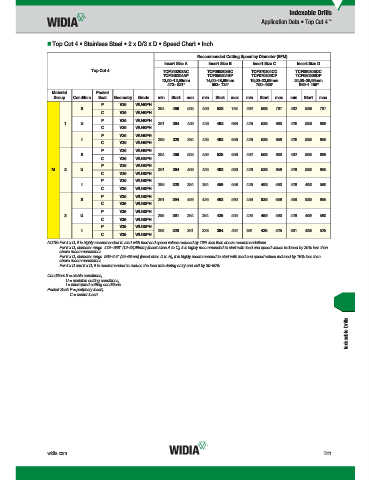

Page 1555 - Master Catalog 2017, Inch

Indexable Drills
Application Data • Top Cut 4 ™

„ Top Cut 4 • Stainless Steel • 2 x D/3 x D • Speed Chart • Inch

Recommended Cutting Speed by Diameter (SFM)
Insert Size A Insert Size B Insert Size C Insert Size D
Top Cut 4 TCF040203AC TCF060203BC TCF070304CC TCF090305DC
TCF040204AP TCF050204BP TCF070306CP TCF080308DP
12,00–13,99mm 14,00–18,99mm 19,00–23,99mm 24,00–29,99mm
.473–.531" .563–.734" .750–.938" .969–1.156"
Material Pocket
Group Condition Seat Geometry Grade min Start max min Start max min Start max min Start max
P V36 WU40PH
S 394 459 525 459 525 754 492 558 787 492 558 787
C V36 WU40PH
P V36 WU40PH
1 U 361 394 459 426 492 689 426 525 689 426 525 689
C V36 WU40PH
P V36 WU40PH
I 295 328 394 426 492 656 426 525 656 426 525 656
C V36 WU40PH
P V36 WU40PH
S 394 459 525 459 525 656 492 558 689 492 558 689
C V36 WU40PH
P V36 WU40PH
M 2 U 361 394 459 426 492 590 426 525 656 426 525 656
C V36 WU40PH
P V36 WU40PH
I 295 328 394 394 459 558 426 492 590 426 492 590
C V36 WU40PH
P V36 WU40PH
S 361 394 459 426 492 590 459 525 656 459 525 656
C V36 WU40PH
P V36 WU40PH
3 U 295 361 394 394 426 525 426 459 590 426 459 590
C V36 WU40PH
P V36 WU40PH
I 262 328 361 328 394 492 361 426 525 361 426 525
C V36 WU40PH
NOTE: For 4 x D, it is highly recommended to start with feed and speed values reduced by 10% less than above recommendations.
For 5 x D, diameter range .473–.938" (12–23,99mm) (insert sizes A to C), it is highly recommended to start with feed and speed values reduced by 20% less than
above recommendations.
For 5 x D, diameter range .969–2.5" (24–68mm) (insert sizes D to H), it is highly recommended to start with feed and speed values reduced by 15% less than
above recommendations.
For 4 x D and 5 x D, it is recommended to reduce the feed rate during entry and exit by 30–50%.
Condition: S = stable conditions,
U = unstable cutting conditions,
I = interrupted cutting conditions
Pocket Seat: P = periphery insert,
C = center insert

Indexable Drills

widia.com T41
