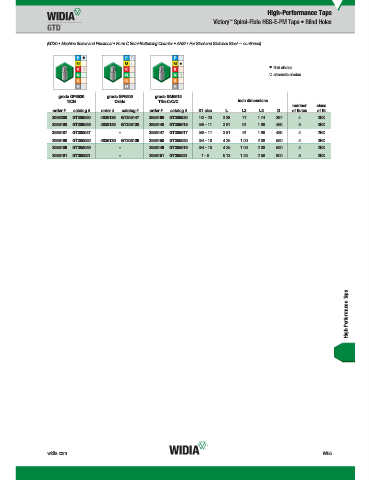

Page 1753 - Master Catalog 2017, Inch

High-Performance Taps
™
Victory Spiral-Flute HSS-E-PM Taps • Blind Holes

(GT30 • Machine Screw and Fractional • Form C Semi-Bottoming Chamfer • ANSI • For Steel and Stainless Steel — continued)

first choice
alternate choice

GP6520
grade GP6520 grade GP6505 grade GM6515
GM6515
GP6505
TiCN Oxide TiN+CrC/C inch dimensions
number class
order # catalog # order # catalog # order # catalog # D1 size L L3 L2 D of flutes of fit
3955200 GT305060 4035138 GT305147 3955160 GT305030 1/2 - 20 3.38 .77 1.74 .367 4 3BX
3955188 GT305048 4035129 GT305138 3955148 GT305018 5/8 - 11 3.81 .91 1.89 .480 5 3BX
3955187 GT305047 – 3955147 GT305017 5/8 - 11 3.81 .91 1.89 .480 4 2BX
3955190 GT305050 4035130 GT305139 3955150 GT305020 3/4 - 10 4.25 1.00 2.08 .590 4 3BX
3955189 GT305049 – 3955149 GT305019 3/4 - 10 4.25 1.00 2.08 .590 4 2BX
3955191 GT305051 – 3955151 GT305021 1 - 8 5.13 1.25 2.58 .800 5 3BX

High-Performance Taps

widia.com W55
