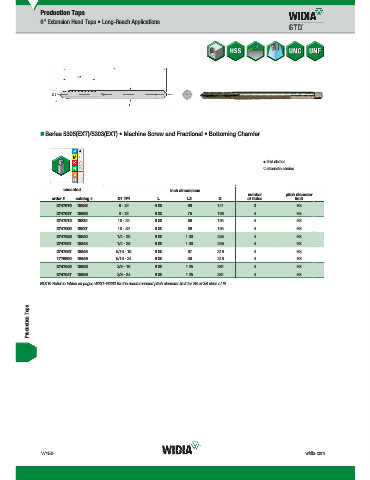

Page 1848 - Master Catalog 2017, Inch
P. 1848
Production Taps
6" Extension Hand Taps • Long-Reach Applications
Series 5305(EXT)/5303(EXT) • Machine Screw and Fractional • Bottoming Chamfer
first choice
alternate choice
uncoated inch dimensions
uncoated
number pitch diameter
order # catalog # D1 TPI L L3 D of flutes limit
2747076 18828 6 - 32 6.00 .69 .141 3 H3
2747037 18892 8 - 32 6.00 .75 .168 4 H3
2747072 18834 10 - 24 6.00 .88 .194 4 H3
2747069 18837 10 - 32 6.00 .88 .194 4 H3
2747065 18840 1/4 - 20 6.00 1.00 .255 4 H3
2747061 18843 1/4 - 28 6.00 1.00 .255 4 H3
2747057 18846 5/16 - 18 6.00 .67 .318 4 H3
1779890 18849 5/16 - 24 6.00 .59 .318 4 H3
2747049 18852 3/8 - 16 6.00 1.25 .381 4 H3
2747047 18855 3/8 - 24 6.00 1.25 .381 4 H3
NOTE: Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 2B or 3B class of fit.
Production Taps
W150 widia.com
