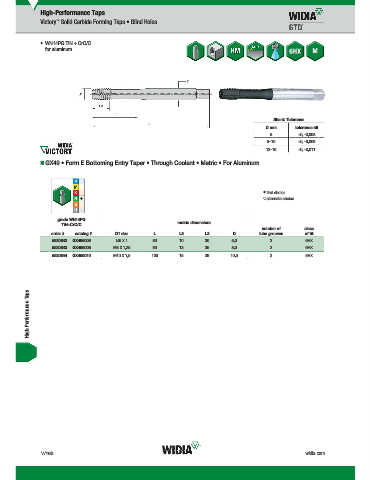

High-Performance Taps
Victory Solid Carbide Forming Taps • Blind Holes
™

• WN14PG TiN + CrC/C
for aluminum.

Shank Tolerance
D mm tolerance h6
6 +0, -0,008
8–10 +0, -0,009
12–16 +0, -0,011

„ GX49 • Form E Bottoming Entry Taper • Through Coolant • Metric • For Aluminum

first choice
alternate choice

grade WN14PG
WN14PG
TiN+CrC/C metric dimensions
number of class
order # catalog # D1 size L L3 L2 D lube grooves of fit
5520842 GX495006 M6 X 1 80 10 30 6,0 2 6HX
5520843 GX495008 M8 X 1,25 90 13 35 8,0 2 6HX
5520844 GX495010 M10 X 1,5 100 15 39 10,0 3 6HX

High-Performance Taps

W160 widia.com
