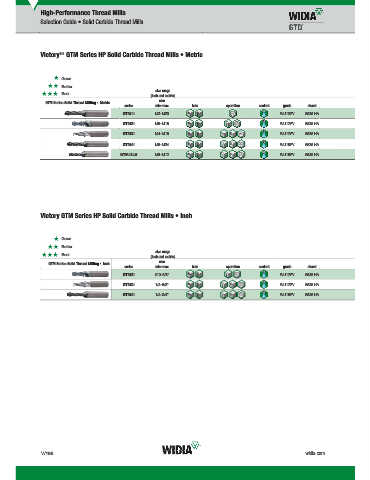

Page 1894 - Master Catalog 2017, Inch

High-Performance Thread Mills
Selection Guide • Solid Carbide Thread Mills

Victory GTM Series HP Solid Carbide Thread Mills • Metric
™

 Good
 Better
size range
 Best (inch and metric)
size
GTM Series Solid Thread Milling • Metric
series min–max hole operation coolant grade shank
GTM11 M3–M20 WU13PV 6535 HA
GTM21 M5–M16 WU12PV 6535 HA

GTM31 M4–M16 WU12PV 6535 HA
GTM41 M6–M24 WU16PV 6535 HA
GTM41LH M6–M12 WU16PV 6535 HA

Victory GTM Series HP Solid Carbide Thread Mills • Inch

 Good
 Better
size range
 Best (inch and metric)
size
GTM Series Solid Thread Milling • Inch
series min–max hole operation coolant grade shank
GTM21 #10–5/8" WU12PV 6535 HA
GTM31 1/4–5/8" WU12PV 6535 HA
GTM41 1/4–3/4" WU16PV 6535 HA
