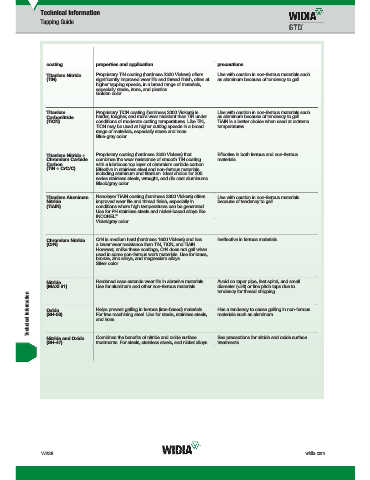

Page 1936 - Master Catalog 2017, Inch

Technical Information
Tapping Guide

coating properties and application precautions

Titanium Nitride Proprietary TiN coating (hardness 2300 Vickers) offers Use with caution in non-ferrous materials such
(TiN) signifi cantly improved wear life and thread fi nish, often at as aluminum because of tendency to gall.
higher tapping speeds, in a broad range of materials,
especially steels, irons, and plastics.
Golden color.

Titanium Proprietary TiCN coating (hardness 3000 Vickers) is Use with caution in non-ferrous materials such
Carbonitride harder, tougher, and more wear resistant than TiN under as aluminum because of tendency to gall.
(TiCN) conditions of moderate cutting temperatures. Like TiN, TiAlN is a better choice when used at extreme
TiCN may be used at higher cutting speeds in a broad temperatures.
range of materials, especially steels and irons.
Blue-gray color.

Titanium Nitride + Proprietary coating (hardness 2300 Vickers) that Effective in both ferrous and non-ferrous
Chromium Carbide combines the wear resistance of smooth TiN coating materials.
Carbon with a lubricous top layer of chromium carbide carbon.
(TiN + CrC/C) Effective in stainless steel and non-ferrous materials
including aluminum and titanium. Ideal choice for 300
series stainless steels, wrought, and die cast aluminums.
Black/gray color.
Titanium Aluminum Nanolayer TiAlN coating (hardness 3300 Vickers) offers Use with caution in non-ferrous materials
Nitride improved wear life and thread fi nish, especially in because of tendency to gall.
(TiAlN) conditions where high temperatures can be generated.
Use for PH stainless steels and nickel-based alloys like
®
INCONEL .
Violet/gray color.

Chromium Nitride CrN is medium hard (hardness 1800 Vickers) and has Ineffective in ferrous materials.
(CrN) a lower wear resistance than TiN, TiCN, and TiAlN.
However, unlike these coatings, CrN does not gall when
used in some non-ferrous work materials. Use for brass,
bronze, zinc alloys, and magnesium alloys.
Silver color.

Nitride Hardened case extends wear life in abrasive materials. Avoid on taper pipe, fast spiral, and small
(MAXI #1) Use for aluminum and other non-ferrous materials. diameter (<#6) or fi ne pitch taps due to
tendency for thread chipping.
Technical Information Oxide Helps prevent galling in ferrous (iron-based) materials. Has a tendency to cause galling in non-ferrous

materials such as aluminum.
For free machining steel. Use for steels, stainless steels,
(SH-50)
and irons.
Nitride and Oxide Combines the benefi ts of nitride and oxide surface See precautions for nitride and oxide surface
(SH-47) treatments. For steels, stainless steels, and nickel alloys. treatments.
