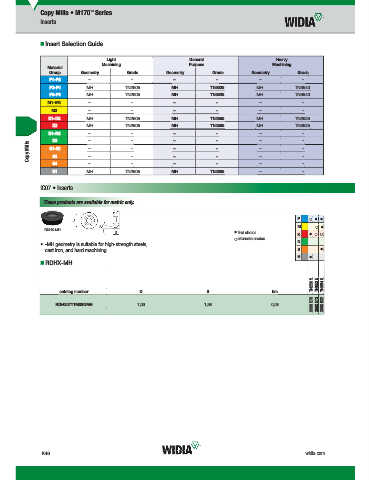

Page 954 - Master Catalog 2017, Inch

™
Copy Mills • M170 Series
Inserts

„ Insert Selection Guide

Light General Heavy
Machining Purpose Machining
Material
Group Geometry Grade Geometry Grade Geometry Grade
P1–P2 – – – – – –
P3–P4 MH TN2505 MH TN6525 MH TN6540
P5–P6 MH TN2505 MH TN6525 MH TN6540
M1–M2 – – – – – –
M3 – – – – – –
K1–K2 MH TN2505 MH TN2505 MH TN6525
K3 MH TN2505 MH TN2505 MH TN6525
N1–N2 – – – – – – – – – – – –
N3
Copy Mills S1–S2 – – – – – – – – – – – –

S3
S4 – – – – – –
H1 MH TN2505 MH TN2505 – –

iC07 • Inserts

These products are available for metric only.

P
M
RDHX-MH
fi rst choice
K
alternate choice
N
• -MH geometry is suitable for high-strength steels,
cast iron, and hard machining. S
H

„ RDHX-MH
TN2505 TN6525 TN6540
catalog number D S hm
3960578 3960573 3960532
RDHX07T1M0SNMH 7,00 1,98 0,08

K46 widia.com
