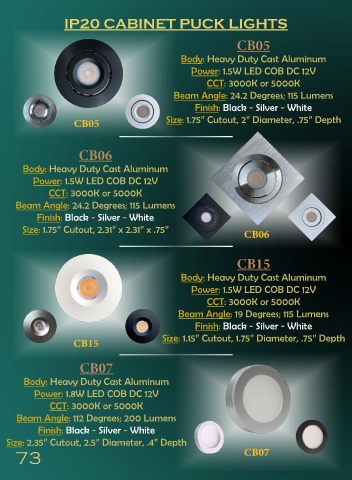

Page 74 - ABBA-Catalog-2025

IP20 CABINET PUCK LIGHTS

CB05

Body: Heavy Duty Cast Aluminum

Power: 1.5W LED COB DC 12V
CCT: 3000K or 5000K

Beam Angle: 24.2 Degrees; 115 Lumens

Finish: Black - Silver - White
CB05 Size: 1.75” Cutout, 2” Diameter, .75” Depth

CB06

Body: Heavy Duty Cast Aluminum

Power: 1.5W LED COB DC 12V

CCT: 3000K or 5000K
Beam Angle: 24.2 Degrees; 115 Lumens

Finish: Black - Silver - White
Size: 1.75” Cutout, 2.31” x 2.31” x .75” CB06

CB15

Body: Heavy Duty Cast Aluminum

Power: 1.5W LED COB DC 12V
CCT: 3000K or 5000K

Beam Angle: 19 Degrees; 115 Lumens

Finish: Black - Silver - White

CB15 Size: 1.15” Cutout, 1.75” Diameter, .75” Depth

CB07

Body: Heavy Duty Cast Aluminum

Power: 1.8W LED COB DC 12V
CCT: 3000K or 5000K

Beam Angle: 112 Degrees; 200 Lumens

Finish: Black - Silver - White
Size: 2.35” Cutout, 2.5” Diameter, .4” Depth

73 CB07
73
