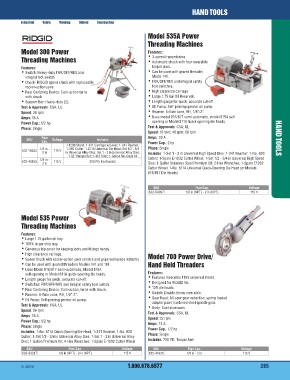

Page 287 - APEX MRO Products

HAND TOOLS

Industrial Safety Welding Oilfield Construction

Model 300 Power Model 535A Power HAND TOOLS

Threading Machines Threading Machines

•FeaStwuritecsh:: Heavy‑duty FOR/OFF/REV and Features:

integral foot switch. • 3‑speed transmission.
• Automatic chuck with four reversible
• Chuck: RIDGID speed chuck with replaceable
forged jaws.
rocker‑action jaws.
• Can be used with geared threader
• Rear Centering Device: Cam‑action turns
Model 141.
with chuck.
• FOR/OFF/REV and integral safety
• Support Bar: Heavy‑duty (2).
foot switches.
Test & Approvals: CSA; UL
Speed: 38 rpm • High clearance carriage.
Amps: 15 A • Large 1.75 Gal Oil Reservoir.
Power Cap.: 1/2 hp • Length gauge for quick, accurate cut‑off.
Phase: Single • Oil Pump: Self‑priming gerotor oil pump.
• Reamer: 5‑flute cone, RH, 1/8”‑2”.
SKU Pipe Voltage Includes • Uses model 816/817 semi‑automatic, model 815A self
632‑15682 Cap. 115 V 1‑1206 Stand; 1‑311 Carriage w/Lever; 1‑341 Reamer;
632‑41855 1/8 in ‑ 115 V 1‑360 Cutter; 1‑811A Universal Die Head; Set 1/2 ‑ 3/4 opening or Model 811A Quick opening die heads.
2 in in Universal Alloy Dies; Set 1 ‑ 2 in Universal Alloy Dies; Test & Approvals: CSA; UL
1/8 in ‑ Speed: 16 rpm; 46 rpm; 58 rpm
2 in 1‑32 Transporter; 1‑418 Oiler; 1‑Gallon Nu‑Clear Oil Amps: 20 A
300 PD; Footswitch Power Cap.: 2 hp
Phase: Single
Includes: 1‑Set 1 ‑ 2 in Universal High Speed Dies; 1‑341 Reamer; 1‑No. 820
Cutter; 1‑Spare E‑1032 Cutter Wheel; 1‑Set 1/2 ‑ 3/4 in Universal High Speed
Dies; 1‑Gallon Stainless Steel Premium Oil; 2‑Hex Wrenches; 1‑Spare E1032
Cutter Wheel; 1‑No. 811A Universal Quick‑Opening Die Head (or Models
816/817 Die Heads)

SKU Pipe Cap. Voltage
632‑84097 1/8 in (NPT) ‑ 2 in (NPT) 115 V

Model 535 Power Model 700 Power Drive/

Threading Machines Hand Held Threaders

•FeaLtaurrgees1: .75 gallon oil tray. F•eaFteuarteusre: s reversible 115V universal motor.
• 100% larger chip tray. • Designed for RIDGID No.
• Generous top cover for keeping tools and fittings handy. • 12R die heads.
• High clearance carriage. • Switch: Double‑throw reversible.
• Speed chuck with rocker‑action jaws centers and grips workpiece instantly. • Gear Head: All‑spur gear reduction, spring loaded
• Can be used with geared threaders Models 141 and 161.
• Uses Model 816/817 semi‑automatic, Model 815A adapter pawl, hardened steel spindle gear.

self‑opening or Model 811A quick‑opening die heads. • Body: Cast aluminum.

• Length gauge for quick, accurate cut‑off. Test & Approvals: CSA; UL
• Switches: FOR/OFF/REV and integral safety foot switch. Speed: 32 rpm
• Rear Centering Device: Cam‑action, turns with chuck. Amps: 13 A
• Reamer: 5‑flute cone, RH, 1/8”‑2”. Power Cap.: 1/2 hp
• Oil Pump: Self‑priming gerotor oil pump. Phase: Single
Includes: 700 PD; Torque Arm
Test & Approvals: CSA; UL
Speed: 36 rpm
Amps: 15 A
Power Cap.: 1/2 hp
Phase: Single
Includes: 1‑No. 811A Quick‑Opening Die Head; 1‑341 Reamer; 1‑No. 820
Cutter; 1‑Set 1/2 ‑ 3/4 in Universal Alloy Dies; 1‑Set 1 ‑ 2 in Universal Alloy
Dies; 1‑Gallon Premium Oil; 4‑Hex Wrenches; 1‑Spare E‑1032 Cutter Wheel

SKU Pipe Cap. Voltage SKU Pipe Cap. Voltage
632‑93287 1/8 in (NPT) ‑ 2 in (NPT) 115 V 632‑41935 1/8 in ‑ 2 in 115 V

© 2016 1.800.678.6577 285
