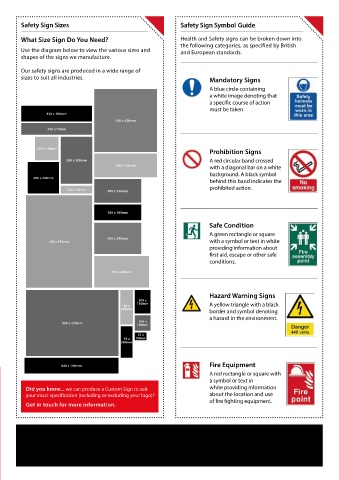

Page 224 - FASTSIGN York - Health and Safety Sign Guide

Safety Sign Sizes Safety Sign Symbol Guide

What Size Sign Do You Need? Health and Safety signs can be broken down into
the following categories, as specified by British
Use the diagram below to view the various sizes and and European standards.
shapes of the signs we manufacture.

Our safety signs are produced in a wide range of
sizes to suit all industries. Mandatory Signs

A blue circle containing
a white image denoting that
a speci c course of action
must be taken.
450 x 100mm
400 x 400mm
450 x 75mm

150 x 150mm
Prohibition Signs
200 x 300mm A red circular band crossed
400 x 150mm with a diagonal bar on a white
background. A black symbol
200 x 200mm
behind this band indicates the
prohibited action.
200 x 50mm 300 x 150mm

300 x 100mm
Safe Condition
A green rectangle or square
300 x 200mm
420 x 594mm with a symbol or text in white
providing information about
rst aid, escape or other safe
conditions.

350 x 200mm

Hazard Warning Signs
100 x
150mm A yellow triangle with a black
82 x
202mm
border and symbol denoting
a hazard in the environment.
100 x
590 x 420mm 100mm
75 x
75 x 50mm
200mm

Fire Equipment
600 x 100mm
A red rectangle or square with
a symbol or text in
Did you know... we can produce a Custom Sign to suit white providing information
your exact speci cation (including or excluding your logo)? about the location and use
of re ghting equipment.
Get in touch for more information.
