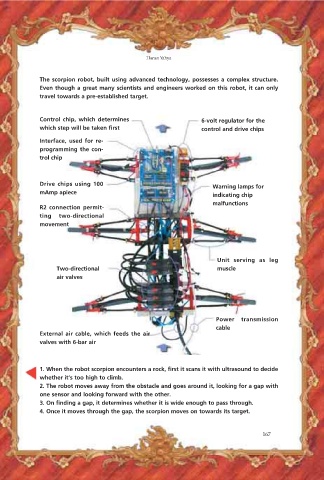

The scorpion robot, built using advanced technology, possesses a complex structure.
Even though a great many scientists and engineers worked on this robot, it can only
travel towards a pre-established target.

Control chip, which determines 6-volt regulator for the
which step will be taken first control and drive chips
Interface, used for re-
programming the con-
trol chip

Drive chips using 100
Warning lamps for
mAmp apiece
indicating chip
malfunctions
R2 connection permit-
ting two-directional
movement

Unit serving as leg
Two-directional muscle
air valves

Power transmission
cable
External air cable, which feeds the air
valves with 6-bar air

1. When the robot scorpion encounters a rock, first it scans it with ultrasound to decide
whether it’s too high to climb.
2. The robot moves away from the obstacle and goes around it, looking for a gap with
one sensor and looking forward with the other.
3. On finding a gap, it determines whether it is wide enough to pass through.
4. Once it moves through the gap, the scorpion moves on towards its target.
