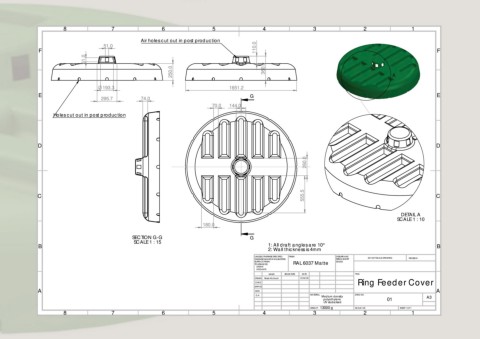

Air holes cut out in post production
51.0
F 110.0 F
61.0
250.0 360.0 A

193.3 1651.2
E G E
295.7 74.0
70.0 144.0
Holes cut out in post production

D D

260.0

C 555.5 C

DETAIL A
SCALE 1 : 10
180.0
SECTION G-G G
SCALE 1 : 15
B 1: All draft angles are 10° B
2: Wall thickness is 4mm
UNLESS OTHERWISE SPECIFIED: FINISH: DEBURR AND DO NOT SCALE DRAWING REVISION
DIMENSIONS ARE IN MILLIMETERS BREAK SHARP
SURFACE FINISH: RAL 6037 Matte EDGES
TOLERANCES:
LINEAR:
ANGULAR:
NAME SIGNATURE DATE TITLE:
DRAWN Róisín McGrath 12/02/25
CHK'D Ring Feeder Cover
APPV'D
A MFG A
Q.A MATERIAL: DWG NO.
Medium density A3
polyethylene 01
UV stabalised
WEIGHT: 13000 g SCALE:1:20 SHEET 1 OF 1
