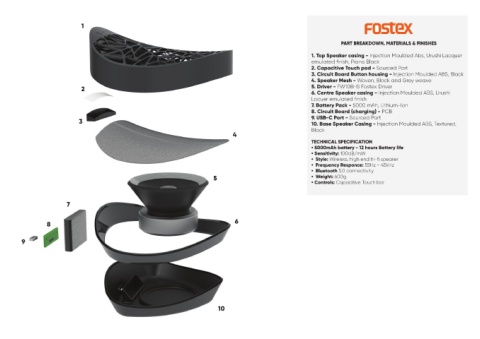

PART BREAKDOWN, MATERIALS & FINISHES

1. Top Speaker casing - Injection Moulded Abs, Urushi Lacquer
emulated finish, Piano Black
2. Capacitive Touch pad - Sourced Part
3. Circuit Board Button housing - Injection Moulded ABS, Black
4. Speaker Mesh - Woven, Black and Grey weave
2 5. Driver - FW108HS Fostex Driver
6. Centre Speaker casing - Injection Moulded ABS, Urushi
Lacuer emulated finish
7. Battery Pack - 5000 mAh, Lithium-Ion
8. Circuit Board (charging) - PCB
9. USB-C Port - Sourced Part
3 10. Base Speaker Casing - Injection Moulded ABS, Textured,
Black
4

TECHNICAL SPECIFICATION
• 5000mAh battery - 12 hours Battery life
• Sensitivity: 100dB/mW
• Style: Wireless, high end hi-fi speaker
• Frequency Responce: 55Hz - 45kHz
• Bluetooth 5.0 connectivity
5 • Weight: 600g
• Controls: Capacitive Touch bar

7

8 6

9

10
