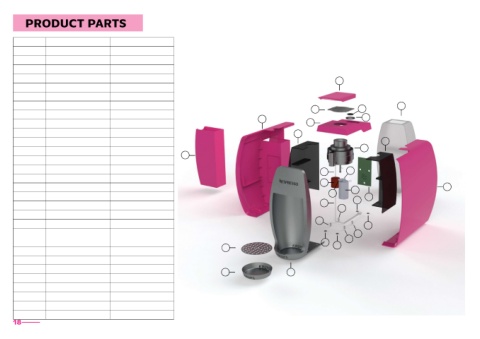

Part No. Part Name Material
1 Left Casing ABS

2 Right Casing ABS
3 Bin ABS
4 Drip Tray Casing 304 Stainless Steel
8
5 Drip Tray Lid 304 Stainless Steel
6 Drip Tray 304 Stainless Steel
7 Water Tank Polypropylene 7
11 12
8 Lid ABS
1 13
9 Left Internal Support ABS 14
10 Right Internal Support ABS 9
11 Pod Release ABS 10
12 Button ABS 15
3
13 Button Casing ABS
14 Top Casing ABS
16 20
15 Main Motor Stainless Steel
17
16 Water Out Pipe Polypropylene 21 2
18
17 Water Heater Stainless Steel 29 22
18 Gear 1 Stainless Steel 19 24

19 Water In Pipe Polypropylene
23
20 Gear 2 Stainless Steel 30
21 Motor Stainless Steel 25
26
22 Circuit Board Fibreglass 27
5 28
23 Screw 1 Stainless Steel
24 Screw 2 Stainless Steel
25 Screw 3 Stainless Steel
6 4
26 Screw 4 Stainless Steel
27 Base Grip 1 SBR
28 Base Grip 2 SBR
29 Base Grip 3 SBR
30 Base Grip 4 SBR
