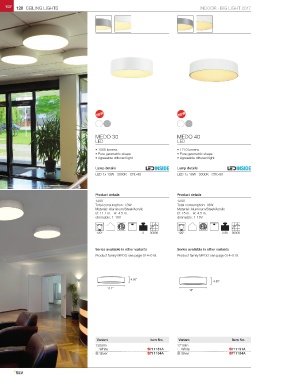

Page 120 - SLV-NA_BL17_Intro+Icons.indd
P. 120
120 CEILING LIGHTS INDOOR · BIG LIGHT 2017
MEDO 30 MEDO 40
LED LED
• 1300 lumens • 1710 lumens
• Pure geometric shape • Pure geometric shape
• Agreeable diffused light • Agreeable diffused light
Lamp details Lamp details
LED 1x 13W 3000K CRI>90 LED 1x 18W 3000K CRI>80
Product details Product details
120V 120V
Total consumption: 13W Total consumption: 18W
Material: Aluminum/Steel/Acrylic Material: Aluminum/Steel/Acrylic
Ø: 11.1 in. H: 4.5 in. Ø: 15 in. H: 4.5 in.
dimmable: 1-10V dimmable: 1-10V
120° 2 30000 120° 3.86 30000
Series available in other variants Series available in other variants
Product family MEDO see page 014–019. Product family MEDO see page 014–019.
4.50”
4.50”
11.1”
15”
Variant Item No. Variant Item No.
1300lm 1710lm
White 711181A White 711191A
Silver 711184A Silver 711194A
SLV-NA_BL17_10_Indoor-CEILING_170221_Feinlayout.indd 120 08.03.17 13:48
