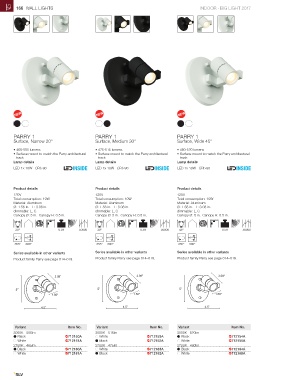

Page 166 - SLV-NA_BL17_Intro+Icons.indd

166 WALL LIGHTS INDOOR · BIG LIGHT 2017

PARRY 1 PARRY 1 PARRY 1
Surface, Narrow 20° Surface, Medium 30° Surface, Wide 45°
• 465-505 lumens • 475-515 lumens • 480-520 lumens
• Surface mount to match the Parry architectural • Surface mount to match the Parry architectural • Surface mount to match the Parry architectural
track track track
Lamp details Lamp details Lamp details
LED 1x 10W CRI>90 LED 1x 10W CRI>90 LED 1x 10W CRI>90

Product details Product details Product details
120V 120V 120V
Total consumption: 10W Total consumption: 10W Total consumption: 10W
Material: Aluminum Material: Aluminum Material: Aluminum
Ø: 1.56 in. L: 3.08 in. Ø: 1.56 in. L: 3.08 in. Ø: 1.56 in. L: 3.08 in.
dimmable: L, C dimmable: L, C dimmable: L, C
Canopy Ø: 5 in. Canopy H: 0.5 in. Canopy Ø: 5 in. Canopy H: 0.5 in. Canopy Ø: 5 in. Canopy H: 0.5 in.

20° 0.59 50000 30° 0.59 50000 45° 0.59 50000

355° 300° 355° 300° 355° 300°
Series available in other variants Series available in other variants Series available in other variants
Product family Parry see page 014–019. Product family Parry see page 014–019. Product family Parry see page 014–019.

3.08” 3.08” 3.08”

5” 5” 5”
1.56” 1.56” 1.56”

4.5” 4.5” 4.5”

Variant Item No. Variant Item No. Variant Item No.
3000K 505lm 3000K 515lm 3000K 520lm
Black 712150A White 712153A Black 712154A
White 712151A Black 712152A White 712155A
2700K 465lm 2700K 475lm 2700K 480lm
Black 712180A White 712183A Black 712184A
White 712181A Black 712182A White 712185A
