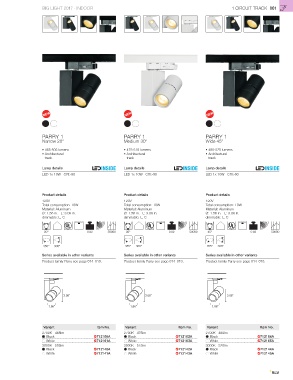

BIG LIGHT 2017 ∙ INDOOR 1 CIRCUIT TRACK 061
PARRY 1 PARRY 1 PARRY 1
Narrow 20° Medium 30° Wide 45°
• 465-505 lumens • 475-515 lumens • 480-520 lumens
• Architectural • Architectural • Architectural
track track track
Lamp details Lamp details Lamp details
LED 1x 10W CRI>90 LED 1x 10W CRI>90 LED 1x 10W CRI>90
Product details Product details Product details
120V 120V 120V
Total consumption: 10W Total consumption: 10W Total consumption: 10W
Material: Aluminum Material: Aluminum Material: Aluminum
Ø: 1.56 in. L: 3.08 in. Ø: 1.56 in. L: 3.08 in. Ø: 1.56 in. L: 3.08 in.
dimmable: L, C dimmable: L, C dimmable: L, C
20° 0.82 50000 30° 0.82 50000 45° 0.82 50000
355° 300° 355° 300° 355° 300°
Series available in other variants Series available in other variants Series available in other variants
Product family Parry see page 014–019. Product family Parry see page 014–019. Product family Parry see page 014–019.
3.08” 3.08” 3.08”
1.56” 1.56” 1.56”
Variant Item No. Variant Item No. Variant Item No.
2700K 465lm 2700K 475lm 2700K 480lm
Black 712160A Black 712162A Black 712164A
White 712161A White 712163A White 712165A
3000K 505lm 3000K 515lm 3000K 520lm
Black 712140A Black 712142A Black 712144A
White 712141A White 712143A White 712145A
