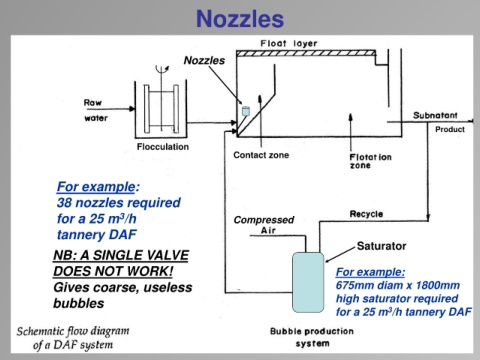

Nozzles









                                                                   Nozzles














                                                                                                                                                              Product


                                                  Flocculation
                                                                                     Contact zone




                     For example:


                     38 nozzles required


                                            3
                     for a 25 m /h                                                   Compressed
                     tannery DAF

                                                                                                                                  Saturator
                    NB: A SINGLE VALVE

                    DOES NOT WORK!                                                                                        For example:


                    Gives coarse, useless                                                                                 675mm diam x 1800mm


                    bubbles                                                                                               high saturator required
                                                                                                                                             3
                                                                                                                          for a 25 m /h tannery DAF
