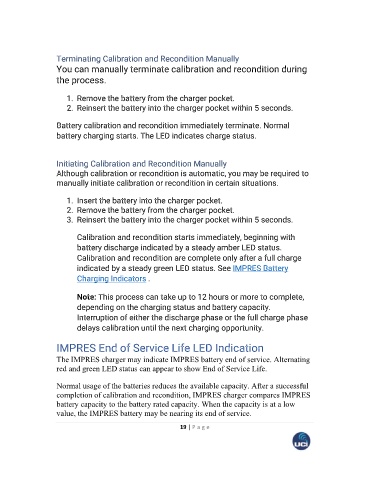

Page 19 - user guide MOTOTRBO R7_Neat

Terminating Calibration and Recondition Manually

You can manually terminate calibration and recondition during
the process.

1. Remove the battery from the charger pocket.
2. Reinsert the battery into the charger pocket within 5 seconds.

Battery calibration and recondition immediately terminate. Normal
battery charging starts. The LED indicates charge status.

Initiating Calibration and Recondition Manually
Although calibration or recondition is automatic, you may be required to
manually initiate calibration or recondition in certain situations.

1. Insert the battery into the charger pocket.
2. Remove the battery from the charger pocket.
3. Reinsert the battery into the charger pocket within 5 seconds.

Calibration and recondition starts immediately, beginning with
battery discharge indicated by a steady amber LED status.
Calibration and recondition are complete only after a full charge

indicated by a steady green LED status. See IMPRES Battery
Charging Indicators .

Note: This process can take up to 12 hours or more to complete,

depending on the charging status and battery capacity.
Interruption of either the discharge phase or the full charge phase
delays calibration until the next charging opportunity.

IMPRES End of Service Life LED Indication

The IMPRES charger may indicate IMPRES battery end of service. Alternating
red and green LED status can appear to show End of Service Life.

Normal usage of the batteries reduces the available capacity. After a successful
completion of calibration and recondition, IMPRES charger compares IMPRES
battery capacity to the battery rated capacity. When the capacity is at a low
value, the IMPRES battery may be nearing its end of service.
