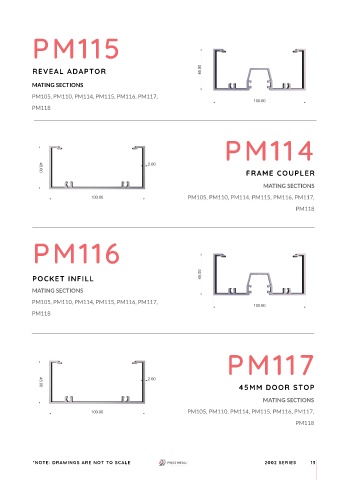

Page 13 - PMAA Brochure_A4
P. 13

PM115






            REVEAL ADAPTOR


            MATING SECTIONS
            PM105, PM110, PM114, PM115, PM116, PM117,

            PM118



                                                                                PM114







                                                                                       FRAME COUPLER

                                                                                             MATING SECTIONS
                                                                   PM105, PM110, PM114, PM115, PM116, PM117,

                                                                                                         PM118



             PM116








            POCKET INFILL

            MATING SECTIONS
            PM105, PM110, PM114, PM115, PM116, PM117,

            PM118





                                                                                 PM117







                                                                                     45MM DOOR STOP

                                                                                             MATING SECTIONS
                                                                   PM105, PM110, PM114, PM115, PM116, PM117,

                                                                                                         PM118






             *NOTE: DRAWINGS ARE NOT TO SCALE                                                 2002 SERIES     13
