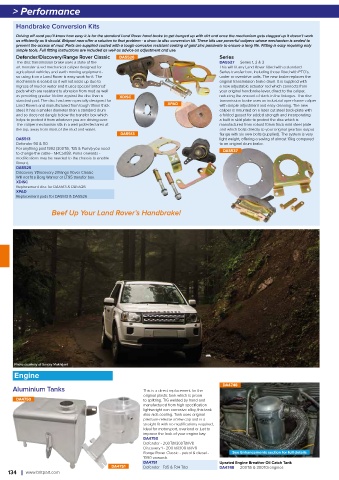

Page 130 - JGS4x4 CATALOGUE

> Performance

Handbrake Conversion Kits
Driving off-road you’ll know how easy it is for the standard Land Rover hand brake to get bunged up with dirt and once the mechanism gets clogged up it doesn’t work
as efficiently as it should. Britpart now offer a solution to that problem - a drum to disc conversion kit. These kits use powerful calipers whose mechanism is sealed to
prevent the access of mud. Parts are supplied coated with a tough corrosion resistant coating of gold zinc passivate to ensure a long life. Fitting is easy requiring only
simple tools. Full fitting instructions are included as well as advice on adjustment and use.
Defender/Discovery/Range Rover Classic DA5526 Series
The disc transmission brake uses a state of the DA5537 Series 1, 2 & 3
art monster sized mechanical caliper designed for This will fit any Land Rover fitted with a standard
agricultural vehicles and earth moving equipment - Series transfer box, including those fitted with PTO’s,
so using it on a Land Rover is easy work for it. The under or overdrive units. The new brake replaces the
mechanism is sealed so it will not seize up due to original transmission brake drum. It is supplied with
ingress of mud or water and it uses special ‘sintered’ a new adjustable actuator rod which connects from
pads which are resistant to abrasion from mud as well your original handbrake lever, direct to the caliper,
as providing greater friction against the disc than a XDISC reducing the amount of slack in the linkages. The disc
standard pad. The disc has been specially designed for transmission brake uses an industrial open-frame caliper
Land Rovers and manufactured from tough 10mm thick XPAD with simple adjustment and easy cleaning. The new
steel. It has a smaller diameter than a standard drum caliper is mounted on a laser cut steel back-plate with
and so does not dangle below the transfer box which a folded gusset for added strength and incorporating
helps to protect it from whatever you are driving over. a built in skid plate to protect the disc which is
The caliper mechanism sits in a well protected area at manufactured from robust 10mm thick mild steel plate
the top, away from most of the mud and water. and which bolts directly to your original gearbox output
DA5513 flange with six new bolts (supplied). The system is very
DA5513 light weight, offering a saving of almost 10kg compared
Defender 90 & 110 to an original drum brake.
For anything post 1993 (300Tdi, Td5 & Puma) you need DA5537
to change the cable - NRC5088. Puma onwards -
modifications may be needed to the chassis to enable
fitment.
DA5526
Discovery 1/Discovery 2/Range Rover Classic
Will not fit a Borg Warner or LT95 transfer box.
XDISC
Replacement disc for DA5513 & DA5526
XPAD
Replacement pads for DA5513 & DA5526

Beef Up Your Land Rover’s Handbrake!

Photo courtesy of Sanjay Makhijani
Engine

DA4748
Aluminium Tanks This is a direct replacement for the
original plastic tank which is prone
DA4750 to splitting. TIG welded by hand and
manufactured from high specification
lightweight non-corrosive alloy, this tank
also aids cooling. Tank uses original
pressure release screw cap and is a
straight fit with no modifications required.
Ideal for motorsport, overland or just to
improve the look of your engine bay.
DA4750
Defender - 200Tdi/300Tdi/V8
Discovery 1 - 200Tdi/300Tdi/V8
Range Rover Classic - petrol & diesel - See Enhancements section for full details
1990 onwards
DA4751 Uprated Engine Breather Oil Catch Tank
DA4751 Defender - Td5 & Td4 Tdci DA4748 200Tdi & 300Tdi engines
